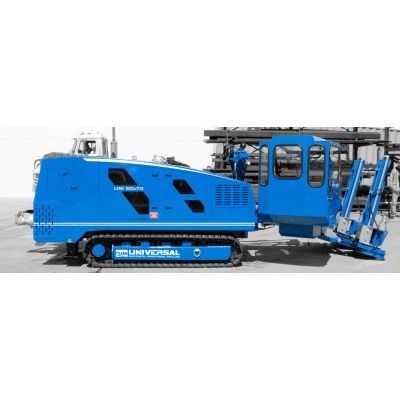

UNI - Model 60x70 -Horizontal Drilling Machines
The UNI 60x70 is unique compact drill platforms. Utilizing the smallest footprint in its class, the UNI 60 platform gives the contractor big power with flexibility. John Deere engine, Kerr water pump and a Rineer Vane Pump Rotation motor components combine to give the rig the highest quality, best performing, and most powerful drill package for the investment. Minimize downtime and increase production footage with the UNI 60x70.
Operation
Thrust force:60,000 lbs
Pullback force:60,000 lbs
Rotation (low):200 rpm
Rotation (high):100 rpm
Torque (low):7,000 ft/lb
Torque (high):3,500 ft/lb
Entry angle:12-18 degrees
Power
Engine:John Deere
Gross Power:180 hp
Fuel:Diesel
Additional:Turbo
Fluid Management
Pump:Kerr
On-Board:Yes
Fluid pressure:1,200 psi
Fluid flow:180 gpm
Dimensions
Height:72 inch (182 cm)
Width:84 inch (213 cm)
Length:288 inch (731 cm)
Weight:17,700 lb (8,030 kg)
Double Rack & Pinion
- Double rack & pinion designed to maximize push/pull capacity, while eliminating unnecessary waste of power
- Vertical configuration allows drastically reduce wear and tear on key components and parts
On-Board Mud Pump
- On-board Kerr mud pump produces 314 gal/min @ 840 psi
- Ease of maintaining valves was engineered into these pumps so that only one special tool is required, a valve puller
- Kerr Pumps are more compact and more durable than competitive pumps
Diagnostics Ports
- Effortless run diagnostics with diagnostics ports
- Onsite testing capabilities
- Eliminate the need for expensive and complicated proprietary testing equipment and computers
- Easy to operate
Rineer Motors
- The Rineer patented vane crossing vane design produces much higher volumetric and mechanical efficiencies than is possible with a standard vane type design
- The 57 Series has four stator cavities and 10 rotor vanes. Each rotor vane works in each stator cavity once per revolution, which results in 40 power strokes per revolution. This helps produce higher mechanical efficiency and flatter torque curves
Integrated MFD Remote
- The MFD can accept telemetry signals from 4* different DCI manufactured receivers: F2™, Eclipse®, Mark III, and Mark V
- MFD unit can also be used with the Eclipse® TensiTrak® Pullback and Pressure Monitoring system
Remote Control
- Safely load, unload, and maneuver the horizontal directional drill from a distance
- Increased safety and visibility
- Optional wireless capabilities
Rod-Loader
- Over-the-top automatic rod-loader
- Simple design makes it easy to operate and load rods on the fly
- Open architecture and design makes it easy to service and perform maintenance
