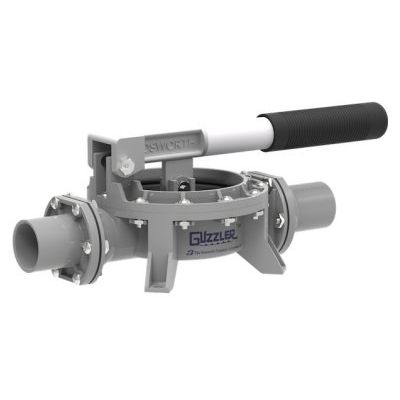

Guzzler - Model GH-0500D Series -Horizontal Hand Pump
Reliable, lightweight hand pump ideal for larger bilge or fluid transfer applications in marine or sanitation applications as well as for home or industrial uses.
Most popular related searches
- Durable, lightweight Acetal plastic
- Accommodates 1-1/4" - 2" hose
- 12 GPM
- Rugged aluminum handle
- Clamp ring adjusts to 12 different handle orientations
- Available with either horizontal or vertical handle
- Optional aluminum clamp ring for added durability
- Max Pressure 15 psi / 1.03 bar
- Lift 12.0 ft / 3.7 m, 22.0 ft / 6.7 m with check valve
- Head 30 ft / 9.1 m
- Capacity (@ 90 strokes/min) 12.0 gpm / 45.4 lpm
- Volume per min 0.55 qt / 0.52 l
- Max Service Temp 212° F / 100° C
- Handle Style: Horizontal/Silver
- Valves: Flapper (Buna-N)
- Diaphragm: Buna-N (Nitrile)
- Clevis/Button Assembly: Delrin Plastic
- Clamp Ring: Delrin Plastic
- Inlet Hose Connection: 1-1/2" Smooth
- Outlet Hose Connection: 1-1/2" Smooth
- Internal Spring: None
- Pre-Pak Accessories: Not selected
- Body & Ports: Delrin / Gray
- Clamp Ring Delrin, Epoxy-coated Aluminum, Epoxy-coated Aluminum with Stop Brackets
- Handle Aluminum: Horizontal/Silver, Horizontal/Black, Vertical (Removable)/Silver
- Valves: Flapper, Duckbill
- Diaphragm: Buna-N, Buna-N Double Sided, Neoprene, Viton, EPDM, Silicone
- Clevis/Button Assembly: Delrin, SS Washer + Aluminum Clevis, All Stainless Steel
- Internal Spring: None, Lightweight, Standard, Heavy-Duty (all stainless steel)
- Other Thru-Deck Mounting Kit (for vertical handle only)
