Ruhrpumpen GmbH
Products
Horizontal - Horizontal Split Case ...

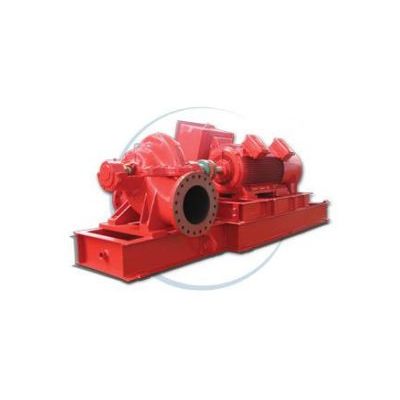

Horizontal - Horizontal Split Case Pump, Vertical Turbine Pump and Complete Skids

FromRuhrpumpen GmbH

SHARE

Design Features: NFPA-21, UL-448, FM-1311, Special design available on request.

Most popular related searches

horizontal split case pump

horizontal split case

split case pump

vertical turbine pump

split case turbine

fire pump package

Single stage double suction impeller.
Split case design allows to give service without disturbing the piping.
Dynamically Balanced Double Suction Impeller to reduce thrust loads.
Clockwise or counter-clockwise rotation viewed from coupling side are available.
Grease lubricated bearings.
Standard materials are Cast Iron Case, Bronze
Impellers & Wear rings. Other materials available.
Special materials for casing and internals on request.
Internal materials are resistant to corrosion in accordance with UL-448.
Base fabricated steel capable to supporting to supporting the weight of the pump and driver. Other base designs are available on special request.
Completely Packaged Fire Pumps Skids are available.
Diesel engine starting electrical / pneumatic system.
API 610 (BB5).
Trane cartridge-pull out design available.

Ruhrpumpen`s Fire Pumps are listed by Underwriter`s Laboratories Inc., and approved by Factory Mutual.

Commercial centers.
High rise buildings.
Oil & Gas onshore & offshore platforms.
Power stations.
Manufacturing and chemical industries.
