Hysan - Horizontal Manual Tie Baler

Hysan - Horizontal Manual Tie Baler

FromHysan Balers, part of Santec Group.

SHARE

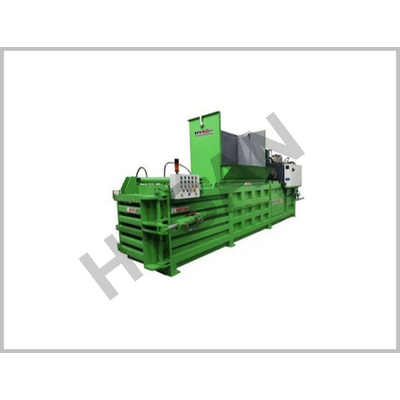

Hysan Horizontal Manual Tie Baler is a cost-effective baling machine designed for compressing recyclable materials like paper, cardboard, plastics, and textiles into compact bales. Unlike the auto-tie version, this model requires manual tying (using wires or straps) to secure the bales, making it a more economical choice for businesses with moderate baling needs.

Most popular related searches

manual tie baler

manual tie horizontal baler

horizontal auto tie baler

PET bottle baler

horizontal baler

cooling conveyor

Easy feeding of materials for efficient compression.
Operators manually secure bales with wires or straps (reduces machine complexity and cost).
Strong pressing force to maximize bale density.
Heavy-duty steel frame for durability.
Customizable compression chamber for different bale dimensions.
Includes emergency stop, safety locks, and protective covers.
Lower Maintenance – Simpler design compared to auto-tie balers.

Arrangement: Manual Tying
Brand: Hysan
Material: MS
Usage/Application: Recycling
Wire Diameter: 2.4-3.4 mm
Motor Power: 11-30 kw
Weight: 4-17 Tons
Pressure: 40-125 ton
Oil Tank Capacity: 240-1460 L
Numbers Of Belts: 3-5 Line
Machine Dimension: 4200*1100*1900 to 9800*1600*3200 mm
Feeding Through: Conveyor
Feed Opening Size (L*W): 700*700 to 220*1100 mm
Cycle Time: 27-45 Sec
Cooling System: Water Cooled
Conveyor Width: 700-2000 mm
Conveyor Weight Capacity: 4-6 Tons
Conveyor Speed: 12m/min
Conveyor Motor Power: 4-7.5 Kw
Chamber Size (L*W*H): 1700*690*690 to 4000*1100*1200 mm
Bale Size (L*W*H): 900*700*700 to 1500*1140*1250 mm
Bale Density: 400-620 kgs/m3

* Specifications are indicative and are subject to change as per customer’s requirement and technical advancements.
