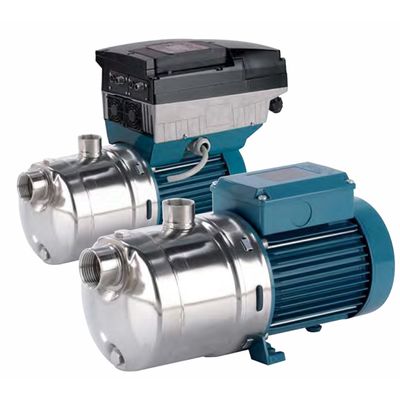

Linn - Model MXH 2, 4, 8, 16 -Horizontal Multistage Close Coupled Pumps
FromLinn-Pumpen GmbH
Horizontal multi-stage close coupled pumps in chrome-nickel stainless steel. Compact and robust construction,with compact lantern bracket and motor with feet. Single-piece barrel casing, with front suction port above pumps axis and radial delivery at top. Filling and draining plugs on the middle of the pump, accessible from any side (like the terminal box).
Most popular related searches
close coupled pump
coupled pump
horizontal multistage pump
multistage pump
drain plug
centrifugal pumping
water supply
centrifugal pump
horizontal centrifugal pumping
horizontal centrifugal pump
Applications
- For water supply. For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request).
- Universal pump, for civil and industrial applications, for garden use and irrigation.
Operating conditions
- Liquid temperature from 15 °C to + 110 °C.
- Ambient temperature up to 40 °C.
- Maximum permissible pressure in the pump casing: 10 bar.
Motor
- 2-pole induction motor, 50 Hz (n = 2900 rpm). MXH: three-phase 230/400 V ± 10% up to 3 kW; 400/690 V ± 10% from 4 to 7,5 kW. Insulation class F. Protection IP 54. Classification scheme IE2. Constructed in accordance with: EN 60034-1;
- EN 60034-30.
Special features on request
- Pump with Victaulic ports (MXH-V).
- Pump with flanged ports (MXH-F).
- Other voltages.
- Frequency 60 Hz (as per 60 Hz data sheet).
- Protection IP 55.
- Special mechanical seal
- Seal rings in FPM.
- Higher or lower lambient temperatures.
- Motor suitable operation with frequency converter.
