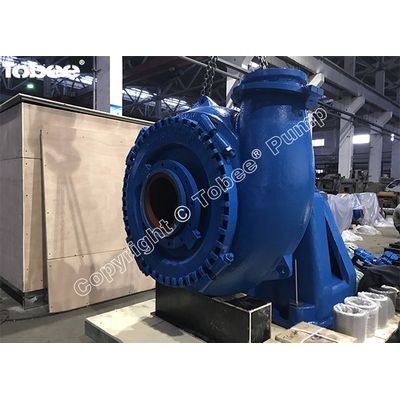

Tobee Gravel Sand Pump 12/10 G-G Horizontal Sand and Gravel Pump Parts, Door GG10013, Back Liner GG10041, Bowl FG10131 and Impeller FG10137.
Size: 12" x 10"
Capacity: 360-1440m3/h
Head: 10-60m
Speed: 400-850rpm
NPSHr: 1.5-4.5m
Eff.: 65%
Power: Max.600kw
Handling solids: 220mm
Materials: High chrome alloy, Cast iron, Cast steel, Stainless steel etc
12x10G-G Gravel pump is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life. 12x10 Sand Gravel Pumps are used to delivery slurry in mining, explosive sludge in metal melting, grudging in dredger and course of river and other fields.
