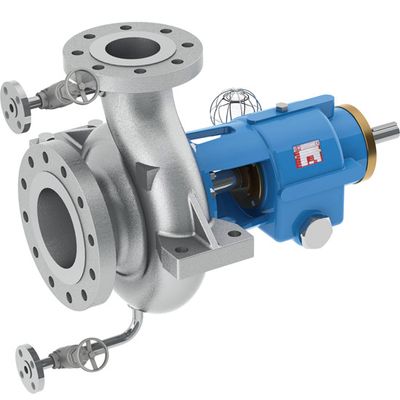

M Pumps - Model CN SEAL M API 610 -Horizontal Single Stage Pump
FromM Pumps S.r.l.
Horizontal, single stage, radially split centerline heavy duty OH2 to API 610 STD 11th Ed. CN SEAL-M API610 pumps range meets the requirements on custom-built solutions in the process industry, in the following areas: Chemical and pharmaceutical, transfer of aggressive, highly corrosive liquids, paper, food processing, plant engineering and construction. For all industries that choose a pumping leak-free and low maintenance for use continuous (abandon of mechanical seal pumps).
Most popular related searches
horizontal single stage pump
food process plant
mechanical seal pump
Hastelloy C 276
corrosive liquid
pump seal
chemical transfer
industrial pump
process pump
- Meeting and exceeding API STD 610 11th Ed. Horizontal, single stage, radial-split, heavy duty design OH2. Back pull out. Possible updating to api 685 without disassembling pump from process connections.
- ANSI 316 (basic version)
- Duplex or Super Duplex
- Hastelloy C® 276
- Incoloy 825
- Titanium et
- Other alloys based on NORSOK/NACE requirements
- Capacity: 4000 m 3 /h
- Delivery Head: 2400m
- Speed: 1450 / 2900 rpm
- Press. Syst: 50 bar
- Temperature: +400 °C
