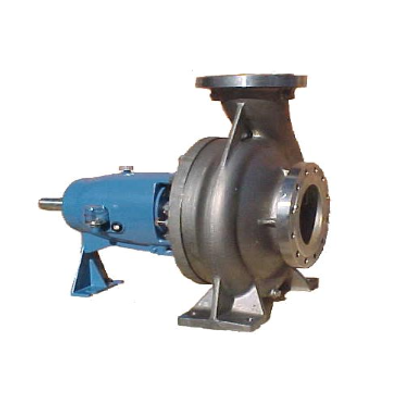

Flowserve-SIHI - Model CBT -Horizontal, Single-Stage Volute Casing Pump
Horizontal, single-stage volute casingpumps with design features and nominal rating toDIN EN ISO 2858. For pumping of liquids with high temperatures (> 200 ºC) special executions with centre line feet are available upon request. The process design permits dismantling of the complete bearing unit towards the drive end, without the pump casing having to be disconnected from the piping. If a spacer coupling is used it is also unnecessary to disconnect the motor.
Series CBT volute casing pumps can be used where the requirement is forpumping of clear or slightly dirty or even corrosive liquids. Series CBT pumps are therefore suitable for use in thechemicalandpetrochemicalindustries,pharmaceuticalindustries,plastic and rubberindustries,ferrous and non-ferrous metalindustries,paper and celluloseindustries,textileindustries,food and drinkindustries,thermal powerstations,municipal water supplyandirrigation.
- Flow rate: up to 2,200 m³/h
- Head: up to 160 m
- Speed: max. 3000 rpm
- Temperature: max. 350 °C
- Casing pressure: up to 25 bar
- Shaft seals: gland packing, mechanical sealing
- Materials: grey cast iron, nodular iron, cast steel, stainless steel
