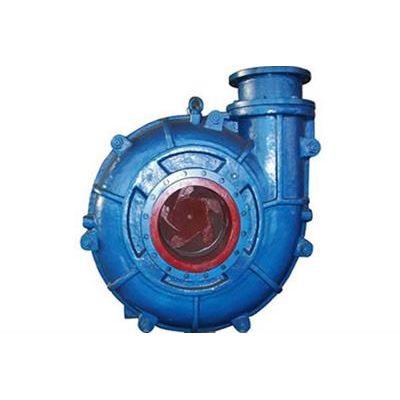

Tongda - Model 300ZJ-I-A65 -Horizontal Slurry Pump
ZJ series slurry pump is horizontal single-stage, single-suction and double case centrifugal slurry pump. Adopting solid-liquid two-phase flow velocity ratio, ZJ series slurry pump can convert the energy between sold and liquid sufficiently in the pump casting; also improves erosion of the flowing parts. With advanced water-power design, reasonable structure and highly corrosion- resistant materials, ZJ slurry pumps have high-efficiency, good-cavitation-capability, long-lifespan, work-reliable advantages, etc.
Structure:
Pump head
Doublecase pump is vertically split, the discharge can be installed at 8 different positions with an interval of 45 degree
Bracket
Horizontally split or cantilever
Shaft seal for choosing
Expeller seal and packing seal;Packing seal;Mechanical seal
Driving
Directly driven;Directly driven via hydraulic coupling;Belt-driven
Meaning of Serial No.
For example: 300 ZJ I A 65
-
300: outlet diameter (mm)
-
ZJ: slurry pump
-
I: single stage pump
-
A: No. of impeller`s vanes (A for 5pcs,B for 4pcs,C for 3pcs,D for 2pcs,E for 1pc, F for 6pcs,G for 7pcs)
-
65: Diameter of impeller (cm)
- Size range (discharge)
- 40mm~350mm
- Capacity
- Up to 2339 m³/h
- Head
- Up to 133m
- Pressure
- Up to 6900Kpa
