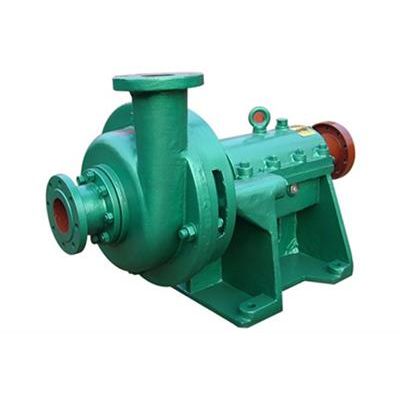

Tongda - Model ZJD - 600D-A82 -Horizontal Slurry Pump
D(ZJD) centrifugal slurry pump is horizontal axial-flow single stageand single case slurry pump. Adopting solid-liquid two-phase flow velocity ratio,D(ZJD) slurry pump can convert the energy between sold and liquid sufficiently in the pump casting, also improves erosion of the flowing parts. It can be used in series for multistage as requested. With advanced water-power design, reasonable structure and highly corrosion-resistant materials, D(ZJD) slurry pumps have high-efficiency, good-cavitation-capability, long-lifespan, work-reliable ,abrasion-corrosion resistant ,easily cleaning and simple maintenance advantages, etc.
- Structure:
- Pump head
- Single-case pump
- Shaft seal for choosing
- Mechanical seal
- Driving
- Directly driven via hydraulic coupling
- Size range (discharge)
- 25mm~600mm
- Capacity
- 4.4 ~5600 m³/h
- Head
- 6.2~ 150m
- Work permits
- Slurry concentration of ash and coal : no more than 45%
- Slurry concentration of ore : no more than 60%
D(ZJD) slurry pumps are widely applied for mine, metallurgy, electric power, coal and other industrial fields to transport coarse particles and abrasive-corrosive slurries.
