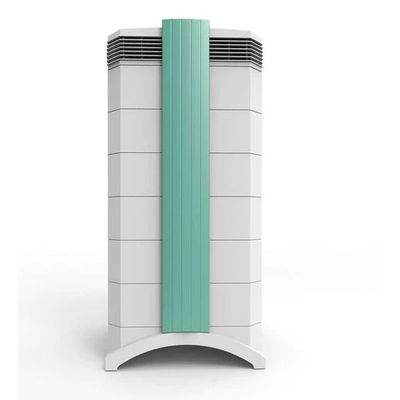

IQAir - Model Cleanroom H13 -Hospital Air Cleaning System
The IQAir Cleanroom H13 hospital air cleaning system is specifically designed for the removal of all solid and liquid airborne particles and aerosols. It has an individually tested, certified and guaranteed filtration efficiency of HEPA H13, and the HEPA replacement filters are classified according to EN1822 H13. The IQAir Cleanroom H13 air cleaner is used for airborne infection control in healthcare settings and the control of particulate matter in cleanroom type applications. It’s large, high capacity filtration media enables the IQAir Cleanroom H13 to deliver more ultra-clean air than any comparable air cleaner. The unit is ideal for patient environments or any other application where 24/7 high-performance filtration is required.
Filtration: 99.97% for particles ≥ 0.3 micron (μm)
Airflow Rate: Speed 1 - 65 m3/h
Speed 2 - 120 m3/h
Speed 3 - 190 m3/h
Speed 4 - 270 m3/h
Speed 5 - 370 m3/h
Speed 6 - 530 m3/h
Room Size: Up to: 265m3
Noise Level: LPA = 22-57 dBA / LWA = 32-67 dBA
Dimensions Without / With Packaging: 82 x 41 x 38 cm / H 94 x W 45 x D 48 cm
Power Usage: 20 to 135 watts
Weight: 21kg
Filter Service Life: PreMax Filter F8 (XL): 12 months (approx)
HyperHEPA Filter H13 (XL): 24-36 months (approx)
Fan motor centrifugal, backward curved, with thermal protector, non-stop use approved
Control panel 4-key touch-pad with 16 character 2-line LCD display
Air intake dual arches at base of unit
Air outlet 320° EvenFlow™ di?user
Colour of main housing / locking arms light grey / green
Housing material non-o?gasing, impact-resistant, UV-stabilized ABS
Performance
MPPS e?ciency (according to EN1822) ≥ 99.95% at air?ow rate ≤ 190 m3/h; ≥ 99.5% at air?ow rate ≤ 475 m3/h
Total system e?ciency (certi?ed) ≥ 99.97% for particles ≥ 0.3 micron (µm)
Air delivery (certi?ed) yes
Leak tested yes
Features
Display languages 4 user-selectable languages: English, French, German, Italian (or Spanish)
Fan speed settings 6
Anti-tampering arm lock yes
Anti-tampering power cord yes
HEPA replacement ?lter tested & certi?ed yes (test certi?cate supplied with replacement ?lter)
Intelligent ?lter life monitor yes (monitors actual usage of each individual ?lter)
Filter life status LEDs 2
Advanced timer yes (allows programming of operating hours and weekdays)
Advanced fan speed selection yes (allows programming of di?erent fan speeds for 2 di?erent time periods)
Adjustable ?lter load indices 2 (large dust and ?ne dust)
HyperHEPA
All IQAir Cleanroom H13 filtration units are individually tested and certified for their high whole system filtration efficiency, and each HyperHEPA H13 particulate filter is also tested and certified for its high efficiency.
Each filter in the IQAir Cleanroom H13 air cleaner uses a micro pleat filtration media with solvent-free separators, capturing and retaining the most harmful particles in the air with a filtration efficiency of up to 99.95% at 0.0003 µm.
The anti-microbial treated filters also effectively destroy microorganisms such as bacteria, fungi and protozoans, making the IQAir Cleanroom H13 air cleaner ideal for all healthcare applications.
EvenFlow Diffuser
Conventional air cleaners return filtered air into the environment through a small, noisy outlet. The IQAir Cleanroom H13 is designed with a 320-degree EvenFlow™ Diffuser to supply more air in more directions without draughts or noise.
This wide dispersion pattern allows the IQAir Cleanroom H13 air cleaner to produce a high air delivery rate with very little disruption to the airflow in a room.
HVAC Independent
IQAir Cleanroom H13 air filtration systems are standalone units, which operate independently with existing HVAC environments. They enable localised control of specific problems wherever they occur. Temporary deployment is achieved without installation due to the “plug and play” nature of the units.
Isolation Rooms InFlow/OutFlow
The IQAir Cleanroom H13 high-performance air cleaning units can be equipped with a range of accessories for use in the specific applications found in the healthcare sector. The IQAir InFlow attachment enables the IQAir Cleanroom H13 unit to create a positive pressure isolation room. The InFlow duct can also be connected to external through wall ventilation, providing a positive pressure isolation room with minimal building works and associated disruption.
The IQAir VM InFlow attachment combines the InFlow attachment with a wall mount, for secure and convenient installation.
Filtration Stages
The Cleanroom H13 removes particulate pollution over two filtration stages:
1. Anti-Microbial PreMax Filter F8 (XL)
The Anti-Microbial PreMax Filter removes coarse and fine particulate matter, thus protecting subsequent stages.
2. Anti-Microbial HyperHEPA Filter H13 (XL)
The Anti-Microbial HyperHEPA stage removes at least 99.97% of all particulate pollution 0.3 microns and larger. The H13 uses a larger PreMax filter than the Cleanroom 100 or 250 MG, which either extends the filter life or allows for higher contamination levels.
