Landyoung - Hot Dip Galvanized Water Tank

The hot dip galvanized water tanks has one of the most types of panels, consisting of 1000 x 1000 mm, 1000 x 500 mm, 500 x 500 mm, 1220 x 1220 mm. As a result, the HDG water tank is much more flexible and economical. At the same time, the strong steel framework as well as zinc finishing defense make it functional as a below ground water container.

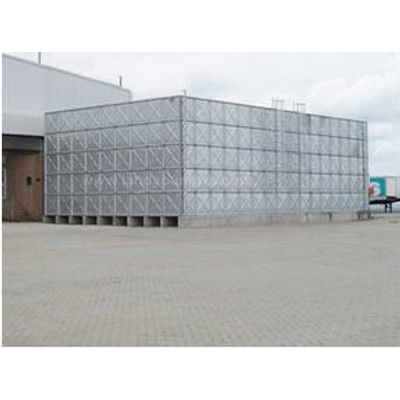

The hot dip galvanized water tanks we provide to you is a quadrangular square plate, which is tightened with bolts, one by one with nuts and washers, assembled at the bottom, and the surrounding and roof is a complete and cubic water storage tank.

As the storage equipment for drinking water, oil and gas, industrial liquids, wastewater, reclaimed water and fire water,hot dip galvanized steel water tanks are widely used in mining, residential buildings, hotels, office buildings, schools, restaurants and other public facilities.

It is also suitable for building water storage, regulating water tanks, inflatable water tanks, condensate water tanks for heating systems, and temporary water storage tanks for construction, geological prospecting, industry, and national defense projects. The tank volume has 24 specifications for design selection. Engineers can also design according to the length, width, and height of the water tank, and then assemble it in the factory.

• Corrosion resistance, compared with other material water tanks, the service life is the longest
• Drinkability, can be used for household water storage to solve daily water storage problems.
• Smooth and beautiful surface, easy to clean
• High impact resistance, strong seismic performance, is the best tensile strength and yield strength material.
• With reliable quality and high temperature resistance, it is the best choice for rainwater projects in Africa, especially when the outdoor temperature exceeds 40 degrees.
• Easy to install, use the bolts provided by us to assemble, so that the installation is very easy, and will not leak.
• Space saving, galvanized steel water tank is assembled by panels, saving space and convenient for transportation.

• Water tank size: 0.5m³-3000 m³
• Panel material: Q235 steel and hot dip galvanized
• Panel size: 0.5*0.5m, 1*0.5m, 1*1m, 1.22*1.22m, the panel thickness is depends on tank height.
• Connection type: Bolted Assembled.
• Foundation:  Concrete foundation and U-steel bottom base.
• Water tank insulation:  Various water tanks can be used as insulation layer to cope with extreme temperatures. Water tanks of different heights use different bottom,  Side and top plates in strict accordance with the assembly principle.
  Assembly principle: Reasonable saving of materials, ensuring safety and efficiency, and a service life of more than 50 years.
