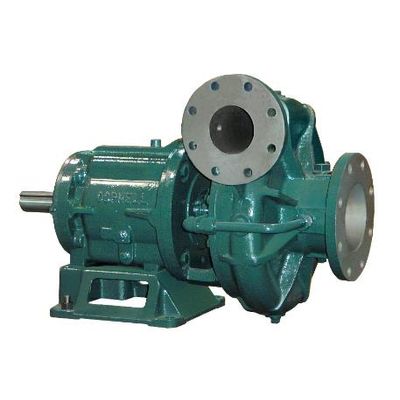

Cornell - Model 3RB-F -Hot Oil Pump
FromCornell Pump LLC
The 3RB general purpose pump is designed with Cornell`s renowned quality and durability. It features a 3" discharge and a 5" suction, enclosed multi-vane impeller and flanged tangential single volute. The pump end mounts to F5, F16, EM5, EMI 6, VC5, VC16, VF5, and VF16 bearing frames. Optional Redi-PrimeorVenturi Prime priming system is available. Bearings are heavy-duty, grease lubricated, single ball bearings with a minimum of 20,000 hours bearing life.
Most popular related searches
- External hydraulic balance line
- Back pullout design
- Replaceable hub & suction wear rings
- Replaceable shaft sleeve
- High efficiency hydraulics
- Low o perati ng costs
- Modular bearing frame
- Long B-10 bearing life (20,000 hour minimum)
- Two year warranty
- Optional Cycloseals with type 1 mechanical seal
- Optional Run-Dry™ lubrication system
- Grease lubrication standard - oil lubrication optional
- SAE #3,4 & 5 engine mount available to fit
- Oversized shaft and bearings
- Uniform thermal expansion
- Ductile iron and stainless steel construction are also available
- External balance line for lower seal box pressure, particle removal, and reduced axial loading
- Vapor suppression line to help eliminate flushing of water-entrained oil
- Handles temperatures up to 550 °F
- Oil-lubricated bearing frames
- Replaceable wear rings and shaft sleeves
- Fully-machined impellers
- Heavy-walled castings
- Two-year warranty
- Low cost of repair
- High efficiency
