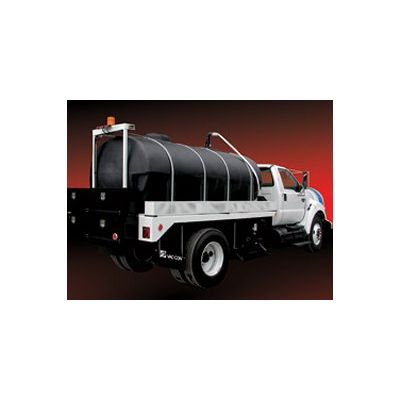

Vac-Con - Hot Shot High-Pressure Water Jet Machines

SHARE

Vac-Con’s Hot Shot high-pressure water jet machines are used for removing stones, bottles, cans, grease, sludge, and other debris from sanitary sewer and/or storm drain lines by the flushing action of high-pressure water. Hot Shot machines are equipped with a noncorroding, polyethylene water tank, with all controls for high-pressure water and hose reel, located at the front of the machine for simpler operation.

Most popular related searches
high-pressure water jetting system
high-pressure water jetting
high-pressure water
water jetting system
high-pressure jetting system
water pump drive
water jetting
jetting system
high-pressure hose
water pump

Water Tank

  • Construction: Polyethylene, Non-Corroding with Molded Baffles
  • Tank Thickness: 1/4 inch (6.35 mm)
  • Hydrant Fill Hose: Diameter: 2-1/2 inch (63.5 mm)
  • Length: 25 feet (7.62 m)
  • Capacities: 1000 & 1600 gallons (Other capacities available upon request)
  • Additional Features: Water level sight gauge, Tank access through inspection port

Water Pump & Water Pump Drive

  • Water Pump
  • Style: Triplex
  • Rating: 30 GPM (113.5 LMP) @ 3000 PSI (207 BAR) with 3/4” hose or 60 GPM (227 LPM) @ 2000 PSI (138 BAR) with 1” hose (Other optional water systems available upon request)
  • Water Pump Drive
  • Standard: Auxiliary Diesel Engine
  • Minimum HP: 110 (82.06 kw)
  • Minimum Displacement: 239 cubic inches (3.9 liters)
  • Optional: Premium Hydrostatic Drive, Chassis Driven

Hose Reel

  • Location: Front mounted for ease of operation
  • Construction: 30 inch (762 mm) ID, steel
  • Capacity: Up to 800 feet (243.8 m) of 3/4 inch (19.1 mm) hose or 600 feet (182.88 m) of 1 inch (25.4 mm) hose
  • Tilting: Hydraulic assist
  • Controls: Engine On/Off Switch, Engine throttle for water pump, Hose reel in/out and speed control
  • Gauges: Water system pressure gauge
  • Hand Gun Water System: 25 feet (7.62 m) of 1/2 inch (12.7 mm) high pressure hose, 20 GPM (75.7 LPM) @ 600 PSI (41 Bar)

Sewer Hose

  • 400 feet (121.9 m) standard.
  • Hose for 60 GPM Pump: 1 inch (25.4 mm) 2500 PSI working pressure, 6250 PSI burst pressure
  • Hose for 30 GPM Pump: 3/4 inch (19.1 mm) 3000 PSI working pressure, 7500 PSI burst pressure

Nozzles

  • Radial Penetrator Nozzle
  • Radial Sanitary Nozzle

Tool Storage

  • Tool trays above rear wheels

Options

  • Variable Flow
  • Articulating Hose Reel
  • Cold Weather Water Recirculation System
  • Side Mounted Tool Boxes
  • Air Purge System
  • Hose Footage Counter
  • Arrowboard
  • Strobe Lights
  • Inspector Cam
  • High Pressure Spray Bar
  • Complete selection of nozzles available
  • Special options available, consult factory

Vac-Con’s Hot Shot is easy to operate, safe, durable and outperforms the competition. All backed by Power Up customer support, and our dedicated dealer network brings more power to you.
