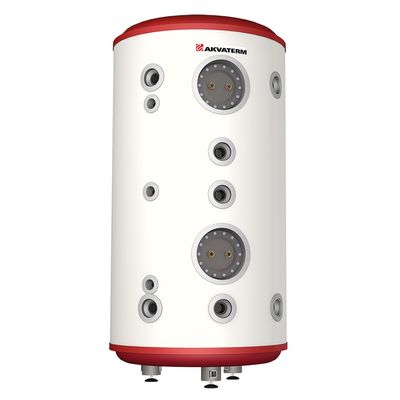

Akva - Model EK -Hot Water Accumulator Tank
The Akva EK hot water accumulator tanks are available in capacities ranging from 300 to 8,000 litres. The pressure rating of the tank is 3 bar. The insulation consists of seamless 100mm polyurethane and a metal casing. The insulation is also available with detachable side sections.
Now, each model also contains adjustable feet, with the aid of which the accumulator can always be set in an upright position.
As standard, the top hatch is equipped with an LK 35 coil for the heating of domestic water. The bottom hatch can be equipped with a domestic water preheating coil, solar coil, or some other charging coil. The accumulator contains 2″ connections for electrical resistors and guide tubes that ensure the correct heat stratification. The connections are located close to the insulation surface to facilitate the installation. The accumulator can also be manufactured under the name Akva PRO, in which case it can be shortened, raised, or modified or equipped with levelling plates, electrical resistors, sleeve connections, flange connections, various hatches, or coils – contact our sales personnel for additional information!

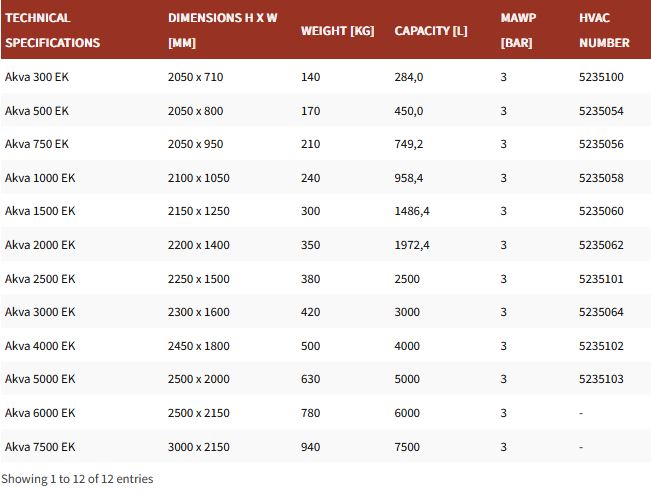

Technical specifications for Akva EK
Optimally suited for use with, e.g., an oil, wood, or pellet-fired boiler. The accumulator can be equipped with electrical resistors that produce heat if the external heat source is switched off or breaks down.
- AKVA hot water coils
- Material: Black steeL EN 10025, EN 1.4521 (AISI 444), EN 1.4301 (AISI 304), EN 1.4404 (AISI 316)
- All tanks can be delivered with a customer specific design.
- Short delivery time despite single order batches.
- Energy class B on 300-1000L with closed cell sprayed polyurethane
- Flexibility and quality are key factors why customers choose Akvaterm.
- Over 2000 pes manufactured unique made-to-orders products
