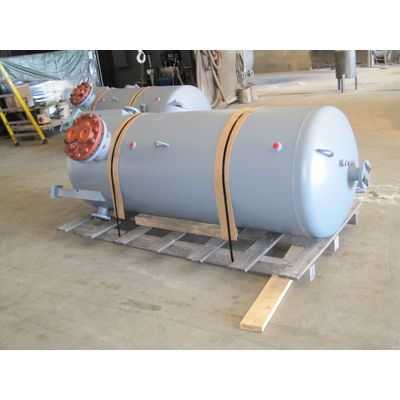

Midwest Tank - Model HW3072 -Hot Water Storage Tanks
These Hot Water Storage Tanks offer versatile configurations tailored to meet specific capacity requirements. The tank diameters are available in 6-inch increments, ensuring precise sizing. The length of the tank's shell can be customized to achieve the desired capacity, making them ideal for diverse application needs. The tanks can incorporate an unlimited number of openings, with sizes configured on a drawing worksheet to match specific requirements. Openings larger than 2 inches feature 150# flanged fittings, while those 2 inches or smaller come with 3000# threaded couplings. A standard manhole measures 12 inches by 16 inches, but other sizes are available upon request. Optional hot water coils can also be included to enhance the tank's functionality. Midwest Tank is committed to providing high-quality, customizable solutions for hot water storage.Most popular related searches
Available in 100, 125, and 150 PSI design pressures.
Other sizes are available upon request. The diameter must be in 6-inch increments. The length of the shell may be manufactured to whatever length is necessary to achieve the desired capacity. Please call Midwest Tank for optimum sizes. Number of openings and sizes may be located on the drawing worksheet. There is no limit on quantity or size of openings. All openings larger than 2″ will be 150# flanged openings. All openings 2″ and less will be 3000# threaded couplings. A standard manhole is 12 inches by 16 inches. Other manhole sizes are available. Hot water coils are optional.
Diameter: 30 in
Capacity: 250 gal
Overall Length: 89 in
Recommended Opening Size: Recirc. 1.5″
Design Pressure: 100 psi, 125 psi, 150 psi
