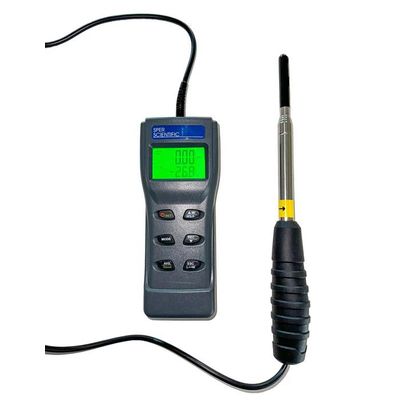

Sper-Scientific - Model 860057 -Hot Wire Anemometer with Telescopic Probe
Handheld Hot Wire Anemometer is a compact, accurate and robust device for measuring air velocity, volume, flow and temperature. Telescopic hot wire probe is designed to minimize the turbulence effect for in-duct measurements, and is well suited for low-flow applications. The probe features a rubberized ergonomic grip and extends/retracts from 10 to 38 inches. Timed and multi-point average flow calculations and in-duct air balancing with fast response time are enabled thanks to the depth and direction indicators.
Other features include switchable metric/imperial measurements, min/max and hold functions, backlit LCD display, tripod mounting hole, auto power-off and a magnetized mount for hands free operation. Rubber o-rings are also included for marking duct depth on the wand.
- Measures velocity, volume flow (cmh, cmm, cfm, I/s) and temperature
- Duct temp. change has limited impact to reading accuracy
- Timed & multi-point average flow calculations
- In-duct air balancing with fast response time
- Depth and direction indicators on probe
- Magnet and tripod mount for hands-free operation
Includes meter, (4) AAA batteries, hard carrying case, magnetic or tripod mount, rubber o-rings and instructions.
- Model:860057
- Wind Speed Range:0.15~20 M/S (30.0~3937 ft/m)
- Wind Speed Accuracy:±(5% of reading+0.1) M/S
- ±(5% of reading+20) ft/m
- Wind Speed Resolution Range:Below 10 M/S:0.01, above 10 M/S:0.1
- (Below 100 ft/m:0.1, above 100 ft/m:1)
- Air Temperature Range:-10.0~50? (14.0~122.0°F)
- Air Temperature Accuracy:±1?(1.8°F): 0.0~50.0?
- ±1.5?(2.7°F): Below 0.0?
- Air Temperature Resolution:0.1?, 0.1?
- Wind Speed Response Time:0.5 seconds (typical)
- Temperature Response Time:60 seconds (typical)
- LCD Update:Every second
- Air Volume Display:0~99999
- Air Volume Resolution:0.1 (0~9999.9) or 1 (10000~99999)
- Air Volume unit:cmm, cmh, l/s, cfm
- LCD Size:45(L) * 26(W) mm
- Operating Temperature:0~50?
- Operating RH%:Humidity <80%
- Storage Temperature:-10~50?
- Storage RH%:Humidity <90%
- Meter Size:178(L) * 70(W) * 33(H) mm
- Probe:8mm diameter
- Telescope Tube:96cm (38 inch) extended
- 26.5cm (10 inch) storage
- Weight:~331g
- Battery:AAA*4 PCS
- Standard Package:
- Meter with built-in hotwire probe,
- Batteries, Magnet, Manual,
- O-rings, Hard Carry Case
