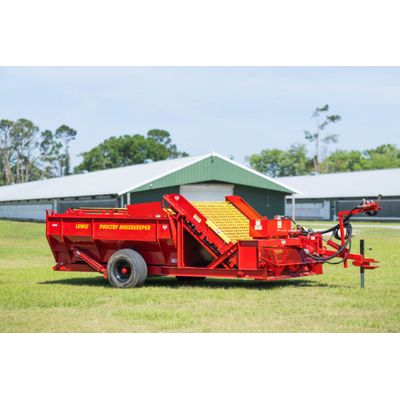

Lewis Brother - Model DB-7 -Housekeeper

The DB-7 is our largest capacity, most heavy-duty machine. This machine is ideal for cleaning out larger houses, meeting the demands of the commercial operator, or serving the farmer who prioritizes efficient cleanout operations above all else. The DB-7 has reinforced loading and leveling bars, 1-1/2” shafting throughout, as well as higher capacity 2000 series motors, allowing it to move more material in a shorter time. It has the same great features of the other dump body models, just larger and higher capacity.

Spinner Assembly

The optional spinner assembly is available on model’s #2, #3, #3.5, #4, #5 & #5LP and is just what you need to spread litter on fields or to apply fresh material to the house floor. The spinners can be removed when the job calls for unloading only.

Hydraulic Tailgate

The Hydraulic Tailgate is available on all units that spread and makes the unloading process faster and easier.

Solid Bar Kit

Solid bars are available on model’s #2, #3, #3.5, #4, #DB-1 & #DB-4. By adding the solid bars, the operator can convert from de-caking to total cleanout in a short time.

Hydraulic Loading / Leveling Kit

Available on model’s #2 & #3 and reduces repair cost by removing the need for belts and pulleys. The hydraulics deliver a more consistent torque which makes the machine operate more efficiently.

Electric Control Valve

Working Height: 69″
Overall Length: 22.5′
Head Width: 89″
Weight: 8200 lbs (empty)
Capacity: 215 cu. ft.
Tires: 12.5L x 15
Required PTO Horsepower: 90 HP
Hydraulic Oil: AW-68
PTO Hydraulic Pump: 22 gpm
Oil Reservoir Capacity: 30 gal
