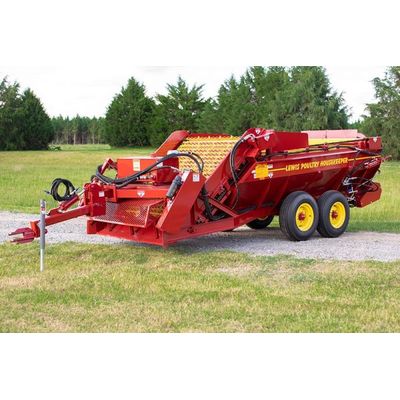

Lewis Brothers - Model 5LP -Housekeeper
The Model 5LP has all the same innovative features of the #5, but with a ‘low-profile’ design for lower ceiling height applications.
- Working Height: 66″
- Overall Length: 22.5′
- Head Width: 69″
- Weight: 5800 lbs (empty)
- Capacity: 135 cu. ft.
- Tires: 12.5L x 16
- Tires (Tandem Optional): 9.5L x 15
- Required PTO Horsepower: 60 HP
- Hydraulic Oil: AW-68
- PTO Hydraulic Pump: 22 gpm
- Oil Reservoir Capacity: 30 gal
Hydraulic Tailgate
The Hydraulic Tailgate is available on all units that spread and makes the unloading process faster and easier.
Hydraulic Loading / Leveling Kit
Available on model’s #2 & #3 and reduces repair cost by removing the need for belts and pulleys. The hydraulics deliver a more consistent torque which makes the machine operate more efficiently.
Optional Equipment:
Spinner Assembly
The optional spinner assembly is available on model’s #2, #3, #3.5, #4, #5 & #5LP and is just what you need to spread litter on fields or to apply fresh material to the house floor. The spinners can be removed when the job calls for unloading only.
Tandem Axle
The tandem axle is available on model’s #3.5, #4, #5, #5LP, #DB-2, #DB-2LP, #DB4 and the Spreader Body. The tandem axle provides a wider base and can absorb rough terrain.
