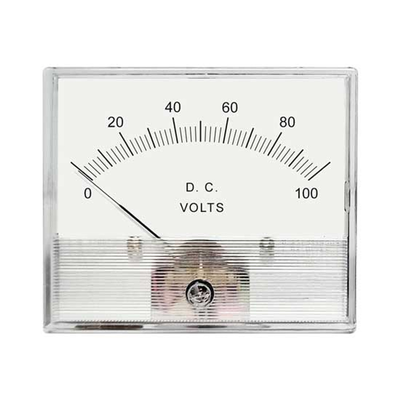

Hoyt - Model 2035-VDC -3.5" DC Voltmeter
The attractively styled 3.5" rectangular analog panel DC Voltmeter has long, flat arc scale and knife edge pointer for excellent readability.
Most popular related searches
- Custom ranges are available on request.
- Special Dials are available with the following options: Additional Colors, Scales, Special Legends, Logo and Mirrors.
- Available with or without illumination.
- Accuracy: ±2% full scale value.
- Resistance: ±15%.
- Movement: Pivot and Jewel or Taut Band.
- Dials: 100 or 90 degree arc, black lettering on white background.
- Pointer: Knife Edge.
- Case: Clear acrylic case.
- Mounting: Specify (S) Surface mount or (B) Bezel mount.
- Meter Approvals: ANSI C39.1, RoHS, REACH.
