Hradil - Model 200.201 -Replacement Cable

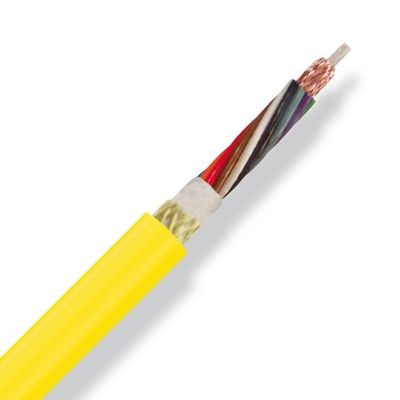

This heavy-duty camera cable suitable for TV-MIDI systems from IBAK is appreciated by our customers all over the world. The robust design of a Vectran braid with a tensile strength of up to 2500 N and the durable polyurethane coat with a special TPU blend offers a very long shelf life, even at very high mechanical loads.
Most popular related searches
- Fits: TV-MIDI systems KT / KW 180, KW 305 from IBAK
- OEM Description: Cable type 524/11
- Order Number: 200.201
- Diameter: 7.4 mm
- Poles (veins): 9 x 0.5 mm² + 2 x 0.08 mm²
- Coaxial: yes
- Optical fiber: no
- Explosion protection: tested according to IEC 60079-14:2014 Annex E.1
Suitable for TV-MIDI systems (KT / KW 180 KW 305) from IBAK
This cable is suitable for TV-MIDI systems from IBAK. It is originally named Cabletype 524/11, the standard length is 180 m and is packaged as desired with suitable plugs.
- Order number: 200.201
- Diameter: 7,4 mm
- Poles (veins) X cross section + Coax: 9 x 0,5 mm² + 2 x 0,08 mm² + Koax
