HSI - Wire Rope Slings for Load Handling
HSI Single Leg Wire Rope Slings are assembled in an ISO 9001:2015 certified facility, ensuring top-notch quality, safety, and efficiency. Each eye on the sling is formed using a mechanical Flemish Eye Splice, optimizing rope capacity and durability. Compliance with OSHA regulations and ISO standards guarantees safety and reliability. Key features include eye and eye end fittings, Flemish eye spliced swaging for larger load capacities, and double tagging for WLL identification. The 6 x 25 IWRC classification provides a balance of fatigue and wear resistance.
HSI® slings are assembled in an ISO 9001:2015 certified facility where quality, safety and efficiency are priority. Audits are conducted every year by an independent third-party to determine if a manufacturer is compliant with standards before re-registration.
The wide offering of Single Leg Wire Rope Slings will surely meet your rigging needs on the jobsite. Each eye on these slings is formed using the mechanical Flemish Eye Splice. This process allows for the most efficient use of the rope capacity with top-quality steel as the pull is directly along the centerline of the rope and eye.
Safety Compliance:
- OSHA: Sling Safety, Title 29 Code of Federal Regulations, Part 1910.184
- ISO 8792:1986, Wire Rope Slings -- Safety criteria and inspection procedures for use
- ISO 7531:1987, Wire rope slings for general purposes -- Characteristics and specifications
- ASME B30.9-2018 Standards for Slings

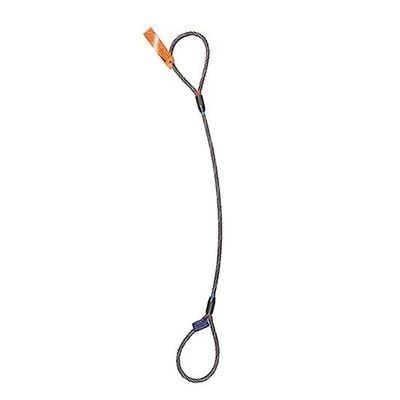

- EYE AND EYE - Is specific to a single-leg sling with flemish loop ends on either side, also known as a Wire Rope Choker. Use of these slings for lifting is prevalent due to its strength and durability.
- FLEMISH EYE SPLICED SWAGING - The sling ends are mechanically formed allowing for larger load capacities. Loops are secured with a forged metal sleeve over the spliced area along with heavy-duty thimbles to protect the ends of the sling.
- DOUBLE TAGGED FOR SAFETY - Two tags are used on HSI® slings to identify WLL (Working Load Limits). Riggers can reference critical information for safe sling application and OSHA compliance.
- GREATER WEAR RESISTANCE - A 6 x 25 IWRC (Independent Wire Rope Core) classification for wire rope slings offer large outer wires that provide a balance between fatigue and wear resistance.
- AMERICAN MADE RIGGING - Hanes Supply, Inc. is proud to be the industry-leading USA based manufacturer of hoisting solutions for industrial construction and building projects since 1930. All slings are manufactured in a certified ISO 9001: 2015 facility.
- Manufacturer: Hanes Supply, Inc
- Brand Name: HSI
- Safety Factor: 5:1
- End Fitting: Eye And Eye
- Legs: One
