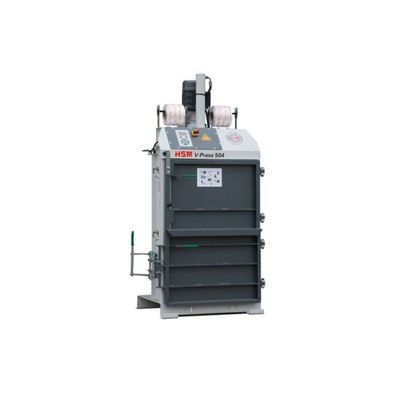

HSM - Model V-Press 504 -Vertical Baling Press

The entry-level model HSM V-Press 504 allows for the eco-nomical disposal of your packaging waste.

Most popular related searches

To fill the press, the upper half of the doors is swung to the right
Bell-crank lever for quick and safe opening of the door
Bale removal and transport with discharge trolley
HSM TCS (Torsion Control System) for monitoring press ram movement
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Suitable for cardboard as well as film
Bale strapping with polyester tape

Order number: 6151141
EAN: 4026631056656
Pressing power: 40 kN
Specific pressing power: 11.2 N/cm² in²
Driving power: 1,1 kW
Voltage / Frequency: 230 V / 50 Hz
Cycle time when idling vacío: 27 s
Volume throughput in idle operation (theor.): 1,5 m³/h
Loading height: 661 mm
Loading aperture width x height: 700 x 470 mm
Bale weight: 60 kg
Width x Depth x Height: 1020 x 812 x 1922 mm
Weight: 290 kg
Method of strapping: vertical
Number of strappings: 2
Type of consumables: Strapping tape
Industry type: Print & Packaging, Industry & Manufacturing, Logistics & Distribution, Druck& Verpackungsindustrie,
Industrie& Produktion, Logistik&Spedition, Retail
Press material: Cardboard, Plastic film, Mixed paper
Use for product line: V-Press
