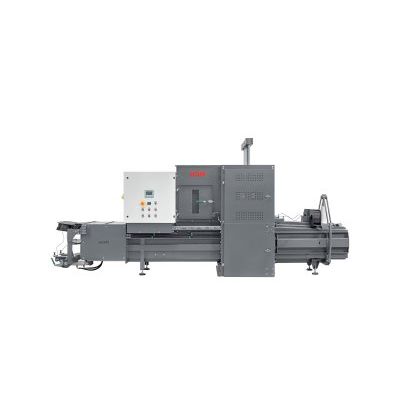

HSM - Model VK 807 V -4 kW Channel Baling Presses / Channel Balers

Implementation of special solutions

• HSM does not just offer hardware alone, but provides individual system solutions as well. When it comes to demanding systems, you can benefit from our extensive know-how and broad experience. Experienced HSM specialists assist you right from the start on site and provide ongoing support and service. With the wide range of options and accessories, our disposal solution can be fully integrated into your existing operation and processes. The individualised design makes the entire system efficient.

Continuous loading

• For continuous loading with conveyor belt or for manual feeding

High bale quality

• Software, optimally adjusted for the different materials, guarantees high bale quality even when material is frequently changed
• Optimised bale dimensions and bale weights for efficient truck loading
• Possible to switch-off wire strapping manually

Strapping

• Available as an option with manual strapping.

• Article Number: 000000000006616000
• Pressing power: 82 kN
• Volume throughput at 20 kg/m³: 0.55 t
• Volume throughput in idle oper: 28 m³/h
• Loading aperture width: 450 mm
• Loading aperture length: 710 mm
• Bale length: 400-800 mm
• Bale width: 500 mm
• Bale height (up to): 500 mm
• Bale weight, depending on material (up to): 60 kg
• Cycle time when idling vacío: 23.2 s
• Driving power: 4 kW
• Voltage: 400 V
• Frequency: 50 Hz
• Width x Height x Length: 1140 x 1310 x 3940 mm
• Number of strappings: 2
• Strapping material: Wire
• Industry type: Print and Packaging, Logistics and Distribution, Retail, Industry and Manufacturing
• Press material: Plastic film, Mixed paper, Cardboard
