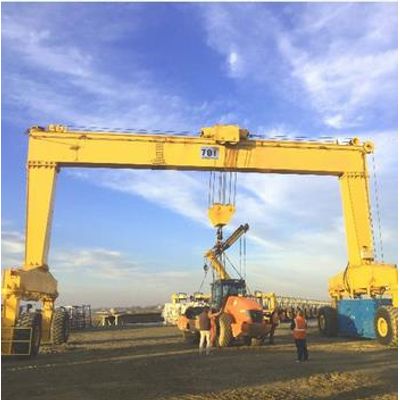

Huadelift - Single Beam Rubber Tyred Gantry Crane
The rubber tyred gantry crane offers high efficiency, flexibility, and mobility, which can be used in various industries and applications. Such as casting yards, bridge erection, external logistics, and storage, wind energy, power plants, steel mills, ports, etc. Huada Lift offers different types of industrial rubber tyred gantry crane for sale: single girder, double girder, and A-frame, which can meet any working conditions. Tell us your specific requirements and our professional engineer team will provide you a customized solution.
- Lifting capacity: 70 Ton
- Span: 14 m
- Lifting height: 7.5 m
Huade Lift focus on the manufacture & design of straddle carriers. We are committed to creating value for our customers and provide with the most economical and efficient material handling solutions.
- Customized design: capacity, span, lifting height, spreader.
- Great flexibility: eight steering modes options.
- Good linkage: two units can be linked to lift long objects.
- Flexible ground beam: designed to adapt to larger slope of the ground.
- Equipped with night lighting, realize 24-hour operation.
- Equipped with jacking cylinder, convenient for maintenance operations.
- Diesel power, oil-electric combination and pure electric power options.
- International famous brand parts, such as Cummins, Dike, Advance, etc.
- Remote control and driver`s room control.
Rubber tyred gantry cranes are widely used in various industrial applications. Here are some of the typical applications and industries where rubber tyred gantry cranes are employed:
- Concrete Precast
- External Logistics Storage
- Steel Mills and Workshop
- Wind Energy
- Road and Bridge Construction
- The main and the auxiliary trailer working synchronously well.
- Hydro-mechanical all-wheel mechanically controlled steering with loop design
- Optimized bolt-on coupling for easy coupling of chassis modules
- Multiple expansion options through additional equipment
- Ball bearing housing design module
- Travel Alarms and Strobe Lights
- Audible alarm
- Oscillating shaft with hydraulic shaft compensation system (horizontal adjustment)
- Box-shaped center frame with high flexural strength
- Combination of longitudinal and transverse options
- Hydraulic suspension stroke +/- 300 mm
- Wheel Guards
- Human body avoidance instrument
- Emergency E-Stop Switch
