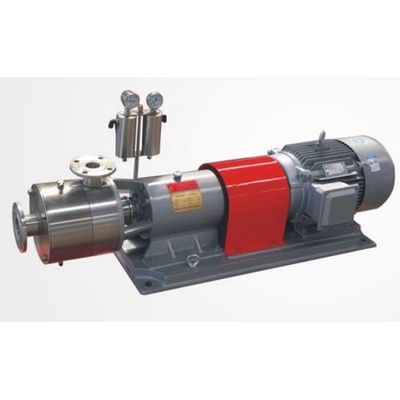

Huayun - Model HIIE -Three-Stage High Shear Emulsifying Pump
The high shear emulsifying pump working chamber is equipped with one set, two sets or sets of rotating stators, there are end suction ceilings and horizontal cantilever structures. Each level is two to six layers, and is composed of primary, secondary or three stage high speed rotating stators. The motor and the working head are elaslically connected. The bearing can be greased or lubricated, it is easy to disassemble and install, and the cost of replacement parts is low. The double-faced mechanical seal is used. The applicable temperature is -20-140 degree celsius. and the temperature range needs to be customized.
Work Requirement
Pressure<18 bar, vacuum>0.3 bar, material temperature< 150 °C. The flow will reduce 20% if viscosity increase every 1000mpas. and must be pumped into the emulsifying pump when the viscosity is about 3000mpas. Anti-explosion is optional.
working process
- The high shear emulsifying pump is a high performance equipment for continuous production or recycling of fine materials. There are 1-3 sets of stator and rotor equipped in the chamber, it generates very strong axial suction power to draw materials into the chamber when the rotor runs.
- After materials enter the chamber, it is quickly dispersed, homogenized and emulsified, and equably mixed.
