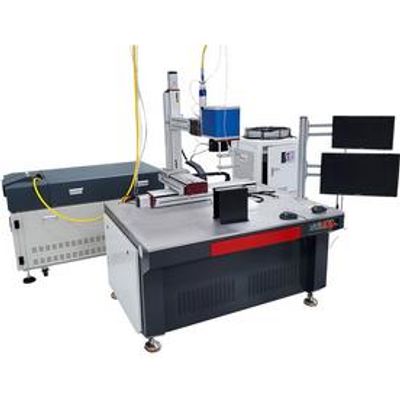

Huiyao - Model HY-2000w -Lithium Battery Laser Welding Machine
Laser welding machine for lithium ion batteries with galvanometer welding efficiency is high, at least 3 times higher than ordinary laser welding machine. Our innovative new laser welding technology optimizes the production process of lithium-ion batteries and offers numerous advantages over traditional ultrasonic welding techniques.
Cost savings with laser tab welding
New laser technology in battery production
Significant advantages over previous ultrasonic welding and reduction of necessary process steps.
Benefit from the broad flexibility of our product portfolio, which covers a wide range of battery designs and enables the production of more powerful cells. There are many configuration options at your disposal - e.g. as a stand-alone or stand-alone system or to integrate modules into new and existing production lines.
Battery Laser Welding Product Description
Laser welding is an efficient and precise welding method using a high-energy-density laser beam as a heat source.
Laser welding is one of the important aspects of laser material processing technology. The welding process belongs to the heat conduction type. The surface of the workpiece is heated by laser radiation, and the surface heat is diffused through the heat transfer pipe. By controlling the width, energy, peak power and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool. Laser welding is a new type of welding method. Laser Welding Machine For Lithium Ion Batteries is mainly aimed at the welding of thin-walled materials and precision parts, which can realize spot welding, butt welding, stitch welding, sealing welding, etc.
Laser Welding Machine For Lithium Ion Batteries Description:
2021 new design lithium battery laser welding machine with galvanometer welding efficiency is high, at least 3 times higher than ordinary laser welding machine
Dedicated laser welding software, capable of welding points, straight lines and various shapes
The laser has high stability, adjustable power, and daily maintenance-free
Extend X Y motion axis, expand welding range
- Model : HY-2000w
- Laser source : 2000w
- XYZ Travel : Customizable
- R Axis : Optional, 360° rotation
- Position Accuracy : ±0.02mm
- Repeatability Accuracy : ±0.01mm
- Motion Source : Servo motor
- Max Speed : 500mm/s
- Cooling Method : Water cooling
- Electricity Demand : Customizable
- Laser Wavelength : 1080nm
- Observation Syatem : CCD system
- Gas Protection : Optional, Argon, Nitrogen
- Environmental Requirements : No vibration, interference and ventilation
- Welding Penetration : 0.1~3.0mm
- MOQ : 1 set
