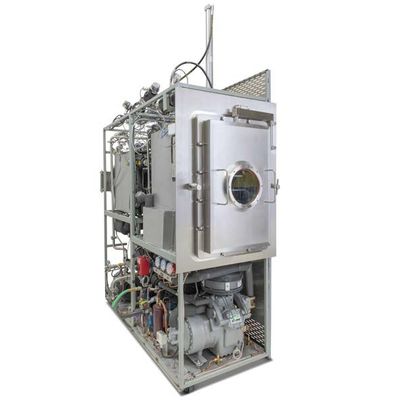

SP - Model S10/S20/S30 -Hull LyoConstellation Pilot Lyophilizers

FromSP Warminster (PA)

SHARE

Our SP Hull LyoConstellation™ S10, S20 and S30 Development and Pilot Lyophilizers build on SP’s reputation as a pioneer of freeze-drying technologies. Designed to GMP standards and ready for full line integration, the LyoConstellation fits in where others cannot. And if time is not on your side, rest assured that our lyophilizers are configured to order - for faster than average market delivery.

Most popular related searches

cleaning in-place (CIP)

remote temperature monitoring

process analysis system

process analytics

process analysis

temperature monitoring

If you need a lyophilizer that slots into your fill-finish workflow and is cleanroom ready, the SP Hull LyoConstellation pilot lyophilizers are here to help. With a comprehensive range of innovative technologies for your high-value products - including controlled ice nucleation, fluid condenser cooling, and large diameter vapor ports for high flow - we’ve done the hard work, so you don’t have to.

Flexible – models include S10, S20, and S30 to ensure you get the lyophilizer you need
Scalable – utilizes the same software and technology options as smaller systems

Built for demanding lyophilization needs - Each of our units accommodate vials up to 30 mL and can hold 100 mTorr while shelves are at +40°C fully loaded, so you can develop the most aggressive of freeze-drying cycles safe in the knowledge that you’re using a lyophilizer that works with you. Our LyoConstellation lyophilizers also come with 5, 6 and 8 shelves so there’s no throughput that is too high.

State-of-the-art lyophilization technologies - To help you overcome the mounting challenges when scaling up your lyophilization processes, LyoConstellation lyophilizers are compatible with our state-of-the-art Line of Sight™ suite of scalable tools. Incorporating Process Analytical Technologies (PAT) to automate, control, and support the lyophilization process – you’re guaranteed efficiency, quality, and consistency throughout the entire fill-finish process.

SP`s Line of Sight PAT Tools:

LyoFlux® TDLAS
Let the data guide you! Measure water vapor mass flow with accuracy during freeze-drying

SMART™ Freeze Dryer Technology
No hesitation - get instant feedback on important product data including resistance, heat flow, and mass transfer

TEMPRIS® Wireless Sensors
Advanced wireless temperature monitoring for the highest quality product - on budget and on time

ControLyo® Nucleation Technology
Take control of your freeze-drying with cutting-edge nucleation technology - for precise control of the freezing point

Application Examples

Therapeutic Proteins
ADC Production for Clinical Trials
Small- to Medium Batch Production for Compounding Pharmacies and Pharma, Including CMO and CRO
Diagnostics

Taking you from start to finish - ideal for cycle development and scale-up to stability, pilot and clinical batch production, through full aseptic production
Technologies that ensure quality - full suite of PAT tools and technologies enables Line of Sight approach in cycle development and scale-up for simplified technology transfer, assuring product safety and quality in production
Validation made easy - validation ports in chamber and condenser as standard, with full documentation package and support available
Accurate end points - Pirani gauge and capacitance manometer as standard
Full Steam in Place (SIP) & Clean in Place (CIP) execution, with manual/H₂O₂ option
Isolator ready with auto locking doors

Unmatched process accuracy and reliability
Deliver Line of Sight™ approach in cycle development and scale up using same technologies from R&D to production
Designed to conform to good instrumentation practices
Optional LyoFLux* TDLAS instrument with integrated communication with SP Hull LyoS™2.0 controls system software
Optional ControLyo® Nucleation Technology for improved product homogeneity and process efficiency
