Mira Magus - Model HBD -Human Being Detection System

MAGUS HBD detects and processes the vibrations generated voluntarily (e.g. movement) but also involuntarily (e.g. heartbeat) by the human body. These vibrations are transferred to the vehicle / container and are detected by the high sensitivity sensors that the MAGUS HBD is equipped with.

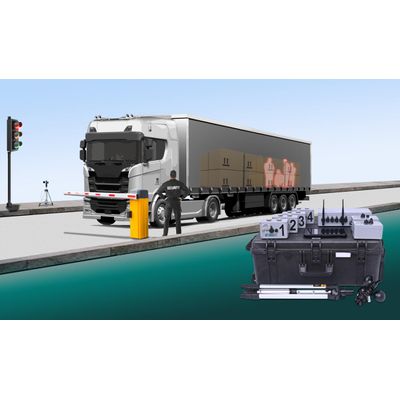

The human being detection sensors are magnetically attached onto different parts of the vehicle’s / container’s chassis while additional sensors are placed on the ground close to the vehicle / container. Upon attachment to the chassis of the vehicle / container and activation, the sensors transform vibrations into electrical signals which are then sent wirelessly to the MAGUS HBD Processing Unit (Magus HBD-PU). Inside the processing unit, the signal acquired from the human being detection sensors is processed and analysed using a complex AI-based algorithm

•

  Human being detection sensors (minimum 2 sensors and up to 6 sensors + 1 spare)

•

  Ground vibration detection sensors (minimum 1 sensor up to 2 sensors + 1 spare)

•

  Wind speed sensor

•

  MAGUS HBD processing unit

•

  Portable rugged device (tablet) running the MAGUS HBD software application

•

  MAGUS HBD - software application

•

  Battery charger for the MAGUS HBD processing unit and wireless sensors

•

  Transportation and storage case

•

  Border crossing points

•

  Penitentiaries

•

  Military units

•

  River and seaports

•

  Road checkpoints for vehicles

•

  Critical Infrastructure
