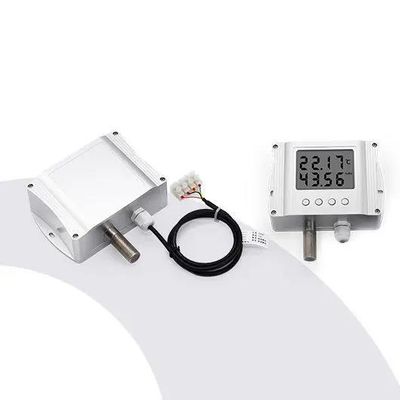

The sturdy and reliable wall mounted DB510-GS sensor is designed for measuring air relative humidity and temperature in exacting interiors in data centers, other industrial buildings, hospitals and cleanrooms or monitoring and control of indoor environmental quality in any space where health security matters. State-of-the-art capacitive polymer sensor ensures excellent calibration long term stability, inertia against water and condensation.
Technical Parameters
Measurement Range
-Humidity: 0 ~ 100 %RH;
-Temperature: - 40 ~ +120 °C (- 40 ~ +248 °F)
Accuracy at 0 ~ 90 %RH & +25 °C(+77 °F)
-Humidity: ± 2.0 %RH;
-Temperature: ± 0.2 °C (31.64 ~ 32.36 °F)
Outputs
-Analog 4 - 20 mA / Digital RS485, Standard Modbus RTU
Response Time
-Humidity: ≤8s
-Temperature: ＞2s
Power Supply Input
- 9~36 VDC
Power Consumption
-Lowest 1.2kw
Display
-dual line LCD / Without Optional
