Huning Umwelttechnik GmbH & Co. KG
Huning - Conveyor Belts

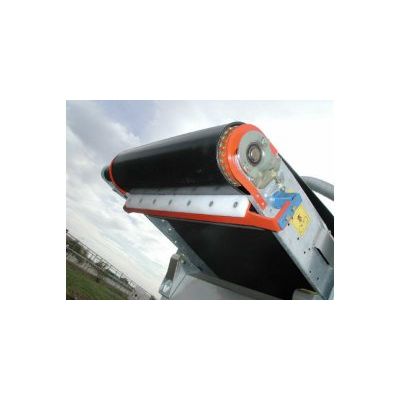

As a rule the application of our centrifuges demands transport and utilization of the dewatered material. To transport the sewage sludge highly-efficient for our customers, we try hard to load all kind of vehicles. To guarantee this we offer telescopable conveyor belts. These belts can load all kinds of transport container.
Most popular related searches
conveyor belt
belt conveyor
hydraulic valve
sewage sludge
telescopic belt conveyor
mechanical plug
plug valve
dewatering
sewage
centrifuge
Technical Description
- Robust conveyor belt with maximum wheel overhang for optimal clearance from the floor.
- Chassis with integrated counterweight and integrated drive components.
- Hydraulically driven main wheel for automatic slewing
- Hydraulic hight adjustment
- Teleskopic part for an automatic buckling
- Rubberized circular feed hopper
- Endless conveyor belt 80cm wide
- equipped with v-shaped carriers 16mm high.
- Hydraulic drive of the belt pulling at the upper end.
- The belt and guide rollers are equipped with lifetime lubricated ball bearings.
- Hydraulic drive powered by electricity for the energy supply of all drives.
- Remote control with a control cable 15m long.
- Operation via Y-delta connection on the main switchbox.
- Rotation control and monitoring
- Polarity inverter in the 5-pole CE plug.
- Mechanic hydraulic valve for start-up activation/release
- Automatic slewing system by means of hydraulic pressure limitation and mechanical end stop.
- Drive 7,5 KW: Energy-optimized hydraulic aggregate by means of load-sensing system
- Infinitely variable Belt speed: 0-35m/min
- Infinitely adjustableSlewing speed
- Hydraulically operated rotary plate
- Steering of the system for repositioning by means of a steering rod on one of the front wheels
