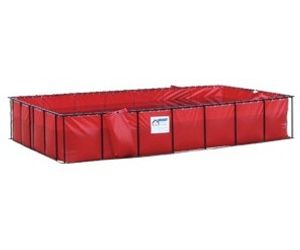

Husky - Classic Portable Folding Frame Water Tanks

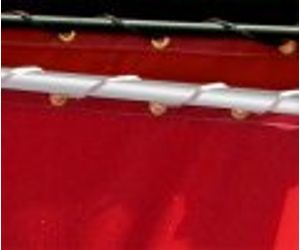

Husky® Port-a-Tank Liners are designed so there are no bulky corners or sagging liner. Our manufacturing process (patent pending) allows us to use one continuous piece of material for the side panel, which is then welded to our Husky®-Duty Floor Material. We also install solid brass grommets in a tight pattern, alleviating any liner drooping at the frame. These features give our collapsing portable folding frame tanks the best fitting, most durable liner available, making it one of the best porta ponds on the market. Our vinyl liners come in 22 oz., 22 oz. sides with a 30 oz. floor, or 30 oz. Vinyl liners are available in a variety of colors and NSF 61 approved 30 oz. potable material or chemical and fuel resistant materials that are great for oil spill clean-up or petroleum storage.
Liners are also available in Husky®-Tough EXLON® which has superior UV resistance, heat resistance, abrasion, puncture resistance, and excellent cold cracking qualities, making it the best folding tank liner material on the market.
Leading Edge Tanks Available

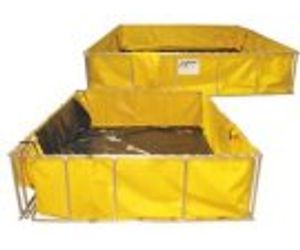

Husky®’s new Leading Edge Tank is the multipurpose tank of the future. The LE Tank is built as a standard folding frame tank in size that can be transformed into a Skinny Tank.
Skinny Tanks Available
Husky® Portable Containment“Skinny Tank” is a folding frame tank with a narrow design. This gives you other options as to where you can set up your dump tank, such as in wooded areas with limited space or even between standing structures.
Double Folding Frame Tanks Available

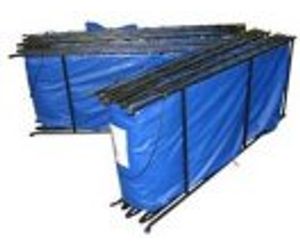

Husky® offers Double Folding Frame Water Tanks for the end user that has limited storage space. These unique frame tanks have a second folding point on the long side of the frame allowing you to fold the frame tank one more time cutting the overall length in half.
Just pull the special heavy duty pins from the laser cut hinges and fold your tank again.
PRO500 Tank Liner Available

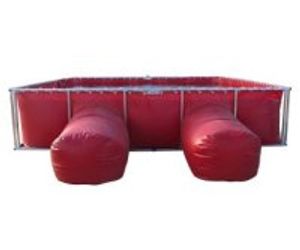

Husky has designed a new folding frame tank liner called the “PRO500”, patent pending. The PRO500 is designed with mega capacity in mind. There are specially designed “bladders” that are welded to the side walls of the liner that when deployed will add approx. 500 gallons of much needed capacity to the original size of your tank.
Quick & Easy Set-Up

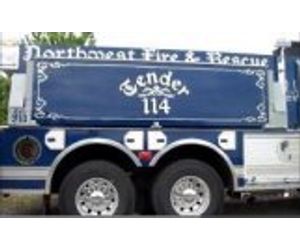

This video (left) shows the the Northwest Fire and Rescue team in Toledo, Ohio setting up a HUSKY®
Folding Frame Tank during a drill. The tank is assembled and completely filled in a matter of minutes. Check out the clear panels on the sides that allow the firemen to check the water level with a quick glance. This is our 2,500 gallon tank with a special custom height of 32".
Husky® Means Quality!
Firemen all over the world put their trust in Husky® folding frame tanks, and Husky® delivers quality that can be counted on, period. We know there is no room for faulty equipment at the scene of a fire, and we take pride in providing folding frame tanks that work as hard as the firefighters who use them.
Quick Release Drain Tube

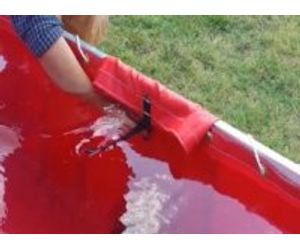

Our stainless steel buckle has great holding power and is virtually unbreakable. Press and hold the buckle tab for approximately one second, and the drain falls open.
Patented Quick Dump Option Available

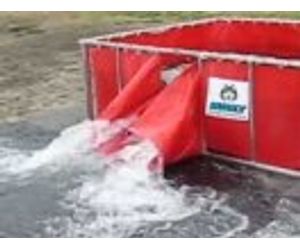

Husky Portable Containment`s "Quick Dump" (US Patent No. 8,733,579 & US Patent No. 8,746,478 and other Patents Pending) option has quickly become a customer favorite. "Quick Dump" is designed to get your folding frame tanks emptied quickly when the fire scene is in it`s tear down stages. Just release the d-rings and latch and watch your tank drain in about 20 seconds.
Husky® Easy Lift Handles
Here at Husky® Portable Containment, we work hard — and we know you do, too. Husky`s® Easy Lift Handles* make your job easier. With our heavy-duty handles attached to the floor of our folding tanks, tank tear-down not only takes less effort, but also saves valuable time and man-power. You can be assured that our Easy Lift Handles are made with the same attention to quality and durability that makes Husky® famous. All of our Folding Frame Tanks come equipped standard with Easy Lift Handles, another way we offer the best value available in a portable folding frame tank.
Available with Steel or Aluminum Frames
ALL HUSKY® folding tanks feature superior heavy duty laser cut hinge design, Pinch-free design and Mig welded construction with lifetime warranty. Custom sizes and designs are available.
Steel
7/8" od., 14 gauge (HREW P & O) Round Tube Steel (3/4" square tube 14 gauge steel available)
Aluminum
1" x 1" x 1/8" 6061 Square Tube Aluminum provides a 25% weight savings over steel and will not rust.
Husky®-Tough Liners EXLON®
Husky® Portable Containment is proud to introduce our new EXLON® folding frame tank liner material, which has been designed to replace DuPont`s discontinued Hypalon liner material. EXLON® was designed with UV resistance, heat resistance, abrasion, puncture resistance and excellent cold cracking qualities in mind allowing Husky® to offer the best folding tank liner material on the market. EXLON® has incredible strength as well; it can be used in tanks up to 10,000 gallon capacity. EXLON® comes with a ten year warranty against UV and weather elements.
Vinyl
Vinyl liners come in 22 oz., 22 oz. sides with a 30 oz. floor, or 30 oz. Vinyl liners are available in a variety of colors and in NSF 61 approved 30 oz. potable material or chemical and fuel resistant materials that are great for oil spill clean-up or petroleum storage.
Accessories

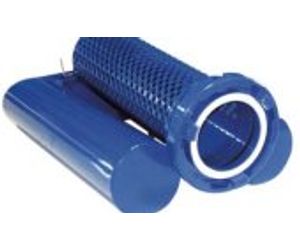

HUSKY® offers a full line of accessories including strainers, top and ground covers, supply line brackets, tank racks and drain tube clamps. Since it has the HUSKY® name, you know you can trust the quality that firefighters all over the world trust.
- Now featuring Husky`s® new and exclusive EXLON® liners!
- Husky® folding water tanks include our exclusive "Easy Lift Handles" (patent pending) and quick-release drain tube, making Husky® the easiest to handle folding water tank on the market.
- 500-5000 gallons
- All frame tanks are 29" tall
- Also available in double fold styles
- Custom-size tanks available
- Aluminum folding frame tanks are 7 ½" wide when folded
Frame Types
Steel
- 7/8" od., 14 gauge (HREW P & O) Round Tube Steel (3/4" square tube 14 gauge steel available)
- Superior heavy duty laser cut hinge design
- Pinch-free design
- Mig welded construction, guaranteed!
- Custom sizes and designs available
Aluminum:
- 1" x 1" x 1/8" 6061 Square Tube Aluminum
- Superior heavy duty laser cut hinge design
- 20-25% weight savings over steel
- Pinch-free design
- Aluminum mig welded construction, guaranteed!
- Will not rust!
- Our hinge design allows for aluminum frames to fold down to 7 ½"
Liners
Husky® port-a-tank liners are designed with no bulky corners full of excess material that you don`t need. Our patent-pending manufacturing process allows us to use one continuous piece of heavy duty 22 oz. vinyl for the side panel, which is then welded to our Husky® duty 30 oz. floor material. Combined with our patent-pending "Easy Lift Handles" welded to the liner floor, Husky`s® frame tank liners are the most durable and easiest to use on the market today.
- Available in NSF-61 approved (suitable for potable water)
- Chemical and fuel resistant
- Exclusive, patent pending, heavy duty floor increases the durability of the liner. With our heavy duty acrylic-coated 30 oz. floor material standard, Husky`s® folding frame tanks are the most durable on the market. Better than Hypalon!
- Easy Lift Handles, offered only by Husky®, are mounted on the floor of our liners and make pick-up quick and easy
- 10" drain tube with quick release for fast draining or mating with another tank - Two drain tubes are standard on 2500+ gallon tanks
- #4 solid brass grommets
- Double stitched, triple reinforced hems
- Ground and top covers available
- Clear view panel liner (optional) includes a 12" wide heavy-duty, reinforced clear vinyl panel that allows you to easily view water level from any angle
- Optional cinch straps keeps your folding frame tank tightly folded for storage
Liner Materials
Vinyl
- Vinyl liners come in all 22 oz., 22 oz. sides with a 30 oz. floor, or all 30 oz.
- 22 oz. liners available in red, yellow, blue, orange, green, black, and lime green
- 20 oz. and 30 oz. available in red, yellow, orange and black
Vinyl liners are also available in NSF 61 approved 30 oz. potable material and in chemical and fuel resistant materials that are great for oil spill clean-up or petroleum storage.
EXLON®
Husky® Portable Containment is proud to introduce our new EXLON® folding frame tank liner material, which has been designed to replace DuPont`s discontinued Hypalon liner material. EXLON® was designed with UV resistance, heat resistance, abrasion, puncture resistance and excellent cold cracking qualities in mind allowing Husky® to offer the best folding tank liner material on the market. EXLON® has incredible strength as well; it can be used in tanks up to 10,000 gallon capacity. EXLON® comes with a ten year warranty against UV and weather elements.
