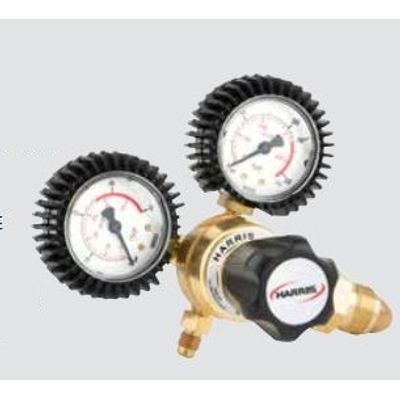

Harris - Model 601-400-580 -HVAC Purging Regulator
The model 601 is designed for applications where weight and size are critical factors. Used for HVAC purging, pressure testing and blanketing with nitrogen or other inert gases. Gauges feature rubber gauge guards for added protection in abusive conditions. Plastic knob for easy grip and precise adjustment. Maximum delivery pressure 400 or 800 PSIG
Most popular related searches
- Capacity: Light/Medium Duty: C v : 0.17
- Gauges: 50mm ABS plastic-psi/bar
- Pressure Regulation: 0.4 PSIG/100 PSIG
- Seat: One-piece encapsulated seat design with internal filter and PTFE Teflon ® Seat
- Body: Brass
- Outlet: 1⁄4” 45º Flare SAE
- Certifications: CGA E-4
- Where Used: HVAC purging, pressure testing and blanketing
- Weight: 1.39 lbs./ 0.63 kg.
- Related Items: Gauge-Guard, CPR63332 P/N: 9003727
