OCM manufactures machines for mechanical dehydration of various types of sludge:

municipal (biological and chemical-physical),
industrial (paper mills, tanneries, distilleries, chemical industry, wood industry, steel mills etc.)
mineral (quarry and tunnel sludge, filtration of laterite etc.)

We can offer the whole line for the dehydration hall:

belt filter presses
table thickeners
drum thickeners
polyelectrolyte dissolving and dosing stations
conveyors for dewatered sludge
static sludge mixers
sludge pumps

As concerns table thickeners, OCM manufactures machines with belt width from 900 mm up to 3200 mm, in various models. We manufacture table thickeners in hot dip galvanised steel or completely in stainless steel. As concerns drum thickeners, OCM manufactures machines with diameter from 700 mm up to 1400 mm, in various models. We manufacture drum thickeners completely in stainless steel.

As concerns polymer stations, OCM produces both manual and automatic machines, using powder polymer; the automatic line called “SP” is manufactured in a range from 500 up to 12000 l/h of polyelectrolyte solution, with concentrations (depending on models) from 0.05 up to 0.5%. The manual line called “VPM” has one only tank and is manufactured in models ranging from 300 to 3000 dm3. The stations can be equipped with dosing pumps for the polymer solution, and various ancillary equipment such as a feeler for powder level, electric anti-condensation resistance, stirrer for the storage tank, ladder with foot-space for loading the powder, flow-meter for the solution and more.

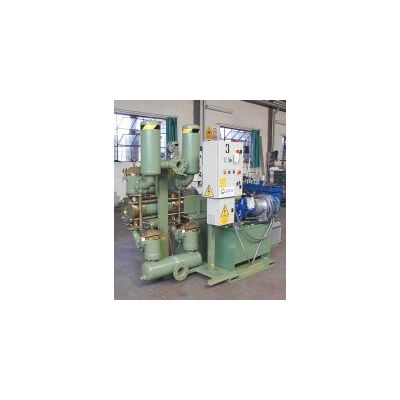

Hydra - Double Acting Piston Pumps

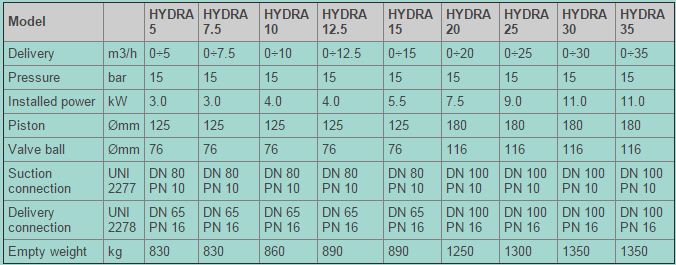

Technical Data
