Vexves Hydrox - Hydraulic Actuator
FromVexve Oy

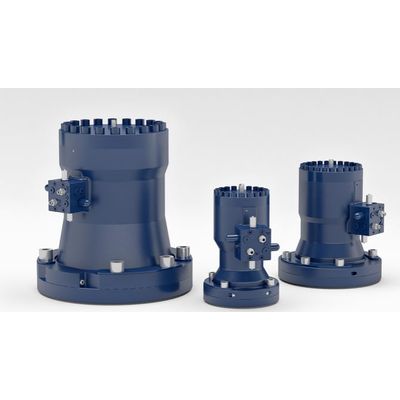

Vexve’s Hydrox hydraulic actuator is suitable for even the most challenging installation sites and conditions. Specifically designed for district heating and district cooling applications and to operate seamlessly with Vexve’s comprehensive range of ball and butterfly valves, the Hydrox hydraulic actuator is the perfect solution for underground installation providing easy and reliable operation with maximum safety at all times.
Most popular related searches
Materials
- Body: Hydrox 2: EN S355
- Hydrox 4 - 64: EN-GJS-400-15
- Flange: EN S355
- Indicator shaft: AISI 316L
- Output shaft: 42CrMo4
- Seals: NBR
- Recommend Neste Hydrauli 46 SUPER
- hydraulic fluid: Neste Biohydrauli SE 46 or equal
Properties
- Torques: 2000 Nm − 64 000 Nm
- Recommend pressure range: 30–200 bar
- Ambient temperature range: −25 ºC − +80 ºC
- Rotating angle: 91º
- IP protection class: IP68
- Corrosion resistance class: C4
- Position transmitter/indicator (low voltage)
- Connection block
