HMA - Model 3000 -Hydraulic Borehole Stress Cell

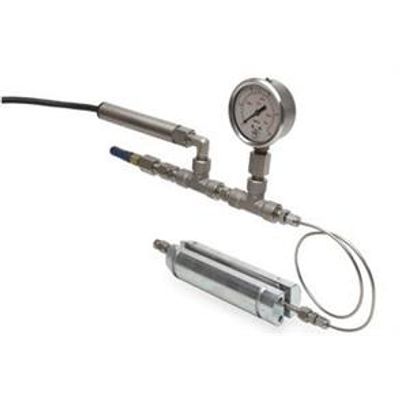

The Model 3000 Hydraulic Borehole Stress Cell is a soft inclusion type cell consisting of an inflatable flat jack with or without platens. The cell is placed in a 50mm diameter borehole and then pressurised. Stress change is monitored with either a Bourdon tube gauge or any suitable diaphragm type pressure transducer (see Model 1200 for details) or both.
Most popular related searches
pressure transducer
borehole
borehole diameter
pressure gauge
gauge pressure transducer
tunnelling
waterproofing
tunnel excavator
tunnelling excavator
hydraulic modeling
For stress change monitoring in:
- Underground mines
- Tunnels
- Support pillars
- Deep excavations
- Shafts
- Applications where electronic devices can not be used (if not filled with electronic diaphragm pressure transducer)
- Manual visual reading
- Simplified installation
- Corrosion resistant
- Waterproof
- Long-term stability
- Suitable for remote readout
- Rugged construction
- Not affected by long cable lengths
- Able to be connected to datalogging systems
- User specified diaphragm pressure transducer
- Pressure ranges (MPa): 10, 16, 25, 40, 60
- Accuracy: ± 0.5 % full scale
- Borehole diameter: 51 mm
- Maximum borehole Length: 20 metres
- Measurement options: Bourdon pressure gauge and/or diaphragm pressure transducer
- Dimension: 51 mm x 250 mm long
- Weight: 3.5 kg
