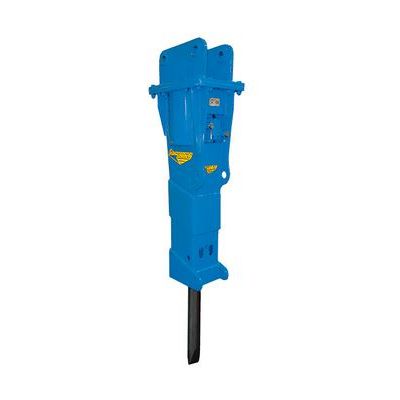

Idromeccanica - Model IMI 58 M-10-20 Ton -Hydraulic Breakers for Excavators
Hydraulic Breakers for excavators, CE marked, provided with Certificate of Warranty that grants you quality and reliability in time.
They are often used for medium diggings and demolitions of concrete structures, especially roadworks with wheel excavators. Thanks to an excellent relation power/weight, they are also used in mines. Featured by a slim and solid structure, they can access less accessible spaces.
Most popular related searches
- Carrier weight (t) 8 ÷ 14
- Weight (kg) 750
- Height with standard tool (mm): 1800
- Height without tool(mm): 1350
- Max. breadth (mm): 410
- Chisel diameter (mm): 94
- Required oil supply (l/min.): 80 ÷ 120
- Oil pressure adjusted to the hammer (bar) 130 ÷ 150
- Maximum back pressure (bar) 15
- Blows per minute: 500 ÷ 750
- Energy per blow (J): 1500
- Inner diam. IN hose/OUT hose (mm) 25/25
