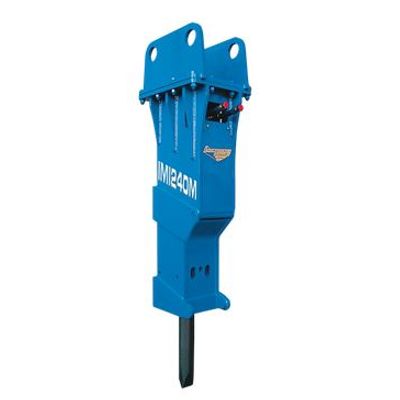

IdromeccanicaModel IMI 240 M – 30-40 Ton -Hydraulic Breakers for Excavators

SHARE

Hydraulic Breakers for excavators, CE marked, provided with Certificate of Warranty that grants you quality and reliability in time.
A particularly heavy duty structure, excellent relation power/weight, low noise and vibration levels transmitted to the arm of the excavator.
Suitable for quarry demolition works of solid rocks, great reinforced concrete demolitions works and other demanding demolitions.

Most popular related searches
  • Carrier weight (t) 26 ÷ 35
  • Weight (kg) 2400
  • Height with standard tool (mm): 2450
  • Height without tool(mm): 1800
  • Max. breadth (mm): 680
  • Chisel diameter (mm): 150
  • Required oil supply (l/min.): 170 ÷ 190
  • Oil pressure adjusted to the hammer (bar) 150 ÷ 180
  • Maximum back pressure (bar) 15
  • Blows per minute: 370 ÷ 800
  • Energy per blow (J): 6500
  • Inner diam. IN hose/OUT hose (mm) 32/32
