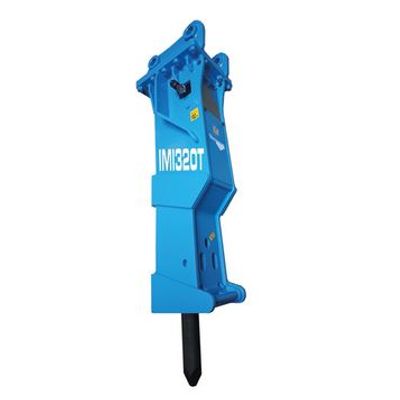

Idromeccanica - Model IMI 320 T –40-50 Ton -Hydraulic Breakers for Excavators
Hydraulic Breakers for excavators, CE marked, provided with Certificate of Warranty that grants you quality and reliability in time.
High demolition power, used especially in great demolition jobs in hard and compact rock quarries and everywhere big daily productions are required. Made with high resistance steel, intended for works of particularly heavy-duty nature.
Most popular related searches
- Carrier weight (t) 35 ÷ 50
- Weight (kg) 3200
- Height with standard tool (mm): 2800
- Height without tool(mm): 2100
- Max. breadth (mm): 650
- Chisel diameter (mm): 155
- Required oil supply (l/min.): 200 ÷ 250
- Oil pressure adjusted to the hammer (bar) 160 ÷ 190
- Maximum back pressure (bar) 15
- Blows per minute: 240 ÷ 480
- Energy per blow (J): 9900
- Inner diam. IN hose/OUT hose (mm) 32/32
