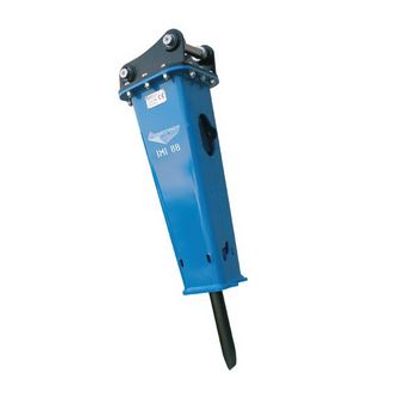

Idromeccanica - Model IMI 88 HP –1-5 Ton -Hydraulic Breakers for Excavators
Hydraulic Breakers for excavators, CE marked, provided with Certificate of Warranty that grants you quality and reliability in time.
Ideal for construction and renovation works, for small demolitions of structures either in concrete or masonry or whenever it`s needed to operate in limited and narrow spaces.
Most popular related searches
- Carrier weight (t) 1 ÷ 3
- Weight (kg) 120
- Height with standard tool (mm): 1000
- Height without tool(mm): 800
- Max. breadth (mm): 200
- Chisel diameter (mm): 48
- Required oil supply (l/min.): 20÷30
- Oil pressure adjusted to the hammer (bar): 80 ÷ 110
- Maximum back pressure (bar) 28
- Blows per minute: 700 ÷ 1200
- Energy per blow (J): 186
- Inner diam. IN hose/OUT hose (mm) 10/10
