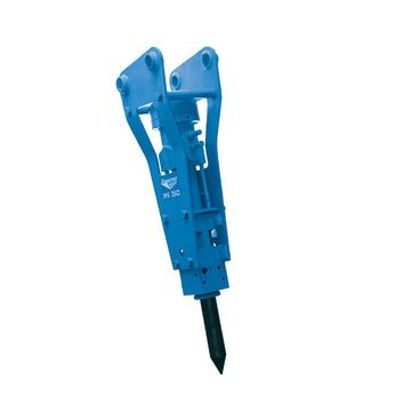

IdromeccanicaModel IMI 260 – 5-10 ton -Hydraulic Breakers for Excavators

SHARE

Hydraulic Breakers for excavators, CE marked, provided with Certificate of Warranty that grants you quality and reliability in time.
Mounted on midi-excavators and backhoe loaders or backhoes, used for a great variety of works, versatile, especially in inhabited areas, with respect to the limits of noise and vibration emissions in the environment.

Most popular related searches
  • Carrier weight (t)  4 ÷ 10
  • Weight (kg)  260
  • Height with standard tool (mm):  1500
  • Height without tool(mm):  1200
  • Max. breadth (mm):  410
  • Chisel diameter (mm):  79
  • Required oil supply (l/min.):  45 ÷ 95
  • Oil pressure adjusted to the hammer (bar)  60 ÷ 75
  • Maximum back pressure (bar)  4
  • Blows per minute:  400 ÷ 900
  • Energy per blow (J):  784
  • Inner diam. IN hose/OUT hose (mm)  19/25
