Idromeccanica Italiana Srl.

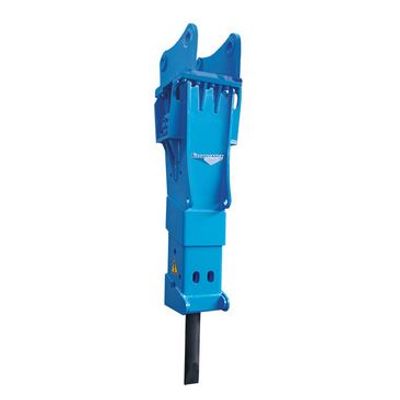

Idromeccanica - Model IMI 140 R – 20-30 Ton -Hydraulic Breakers for Excavators
Hydraulic Breakers for excavators, CE marked, provided with Certificate of Warranty that grants you quality and reliability in time.
These models are very popular and suitable for the most demanding jobs, demolitions of works in reinforced concrete, excavations of big sewerages, quarry works, excavations of tunnels.
Most popular related searches
- Carrier weight (t) 19 ÷ 25
- Weight (kg) 1400
- Height with standard tool (mm): 2270
- Height without tool(mm): 1720
- Max. breadth (mm): 580
- Chisel diameter (mm): 120
- Required oil supply (l/min.): 130 ÷ 190
- Oil pressure adjusted to the hammer (bar) 120 ÷ 160
- Maximum back pressure (bar) 12
- Blows per minute: 450 ÷ 850
- Energy per blow (J): 2900
- Inner diam. IN hose/OUT hose (mm) 25/25
