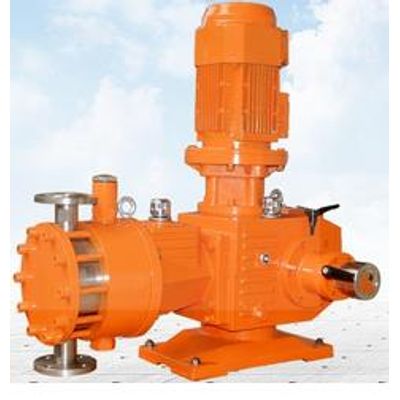

Brace - Model H1YD series -Hydraulic Diaphragm Pumps
The hydraulic oil is pushed by the reciprocating motion of the plunger, and the hydraulic oil pushes the diaphragm to reciprocate to achieve the suction and discharge of the medium.
Most popular related searches
diaphragm pump
worm gearing
air charge valve
check valve
head pump
interlock valve
safety system
diaphragm valve
laboratory homogenizer
- Product Item： H1YD series
- 0.8 to 10,000 L/H
- Max Pressure :500 bar
- pump head Materials:PVC,PVDF,SS316, Hastelloy C
- Category：Hydraulic diaphragm pumps
- Flow Rate: From0.8 to 10,000 L/H
- Max Pressure :500 bar
- Adopting diaphragm-limit valve-compensation valve--automatic oil replenishment and built-in safety protection technology with interlocking safety valve. The limit valve has an accuracy of ±0.002mm, a surface hardness of 60-70HRC, a roughness of 0.4μm, and can be reused 80 million times in the temperature range of -80°C to 160°C.
- PTFE polymer composite diaphragm is used. The diaphragm is subjected to multi-directional rolling and surface quenching treatment, and the degree of homogenization reaches 99.92%, which reduces the cold flow phenomenon during operation and improves the compressive strength.
- Built-in safety valve and charge valve, automatic exhaust and oil replenishment, superior performance and reliability;
- High-precision check valve group is adopted for inlet and outlet to ensure metering accuracy and circulation;
- Integrated "Oude" worm gear auxiliary transmission mechanism, low noise and high efficiency;
- Adopting patented integral sleeve adjustable eccentric transmission mechanism, simple and reliable, the stroke can be 0-100% stepless adjustment; the measurement accuracy is ±0.5%;
- Oil-immersed lubrication ensures long-term reliable operation of the transmission mechanism;
- When transporting dangerous media such as toxic, flammable, explosive and strong corrosion, double or multiple diaphragms can be used;
- Diaphragm rupture alarm device to prevent loss of contact between medium and hydraulic oil when diaphragm is broken;
- Various flow adjustment methods, manual, electric, pneumatic, frequency conversion;
- With electric stroke adjustment mechanism, remote automatic control can be realized;
- It can be connected in parallel with two or more heads, up to 12 heads; multiple pumps can be used to deliver the same medium to reduce the pulse; or a variety of media can be transported as a proportional pump.
- Wide application range, safely transporting various media.
