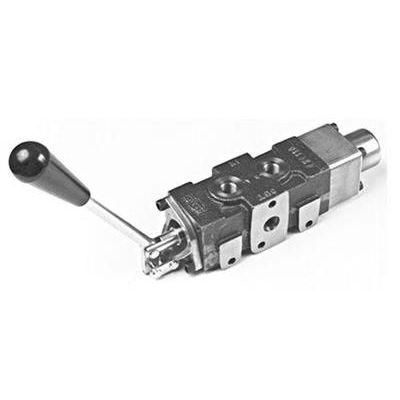

CROSS - Model SS Series -Hydraulic Directional Control Valve
The Cross series SS directional hydraulic control valve offers extremely low leakage with exceptional load holding ability in a small, yet rugged, sectional valve. A single section may be utilized by itself or stacked in a series to perform multiple functions giving this valve a unique versatility. Solenoid as well as manual actuators are available. It is compact, yet large enough to accommodate quick disconnect fittings.
This hydraulic directional control valve offers unique versatility in a compact, yet rugged valve with extremely low leakage and exceptional load holding capability. Each section incorporates threaded "in" and "out" ports so it may be utilized alone ... or stacked for multiple functions. It is large enough to accommodate quick disconnect fittings in the ports and an inlet relief section may be added when required. The SS is ideally suited to the landscape grooming and lawn and garden industries as well as the expanding mobile market.
- 3500 PSI operating pressure
- 7 GPM flow rating
- Open (tandem) center
- Series operation
- 9/16-18 (SAE #6) inlet, outlet and work ports
- Outlet may be used to run other valves downstream (Contact CROSS for guidelines)
- Load checks to prevent reverse flow when shifting out of neutral in lifting applications
- Optional single handle actuator with protective boot
