Jiangxi Huawu Brake Co., Ltd.

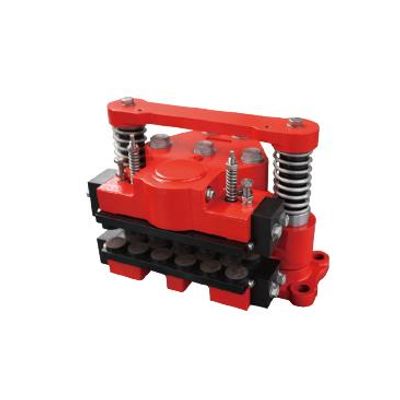

Huawu - Model SBD130-E Series -Hydraulic Disc Brake
Which are mostly installed on the high-speed shaft of double-fed wind turbines, and used for holding braking and emergency braking.
Most popular related searches
- Ambient temperature: -40?~+70?
- Relative humidity: ≤100%
- Normally-opened design, hydrualic applied and spring released, braking force will change as the change of hydraulic pressure.
- Pad wear compensation can be realized by changing piston stroke.
- Single cylinder floating structure, which can properly adapt to the axial shift in certain range of brake disc.
- Positioning mechanism is set on, so eccentric wear can be avoided on friction linings when in the non-horizontally mounted situation.
- Compact structure, few exposed parts and good anti-corrosive property.
- Small clearance, rapid response speed, few moving parts, high reliability and easy maintenance.
- Sliding parts are set with self-lubricating bearings, which are characterized by high transmission efficiency and sensitive motion.
- Friction pad are characterized by high performance and stable friction coefficient.
- When replace pad, it`s unnecessary to dismantle brake, quick and easy, good maintainability.
- Oil drain port is set to prevent leaked oil polluting the brake disc, which is not only safe but environmental protection.
- Limit switch can be set to provide interlocking protection and indicate brakes` status.
SBD130-E Series Hydraulic Disc Brake:
- Piston diameter(mm):120
- Disc diameter (mm):≥800
- Standard disc diameter (mm):40
SBD55-F02 Series Hydraulic Disc Brake:
- Piston diameter(mm):75
- Disc diameter (mm):≥500
- Standard disc diameter (mm):30
SBD64-F Series Hydraulic Disc Brake:
- Piston diameter(mm):90
- Disc diameter (mm):≥500
- Standard disc diameter (mm):30
