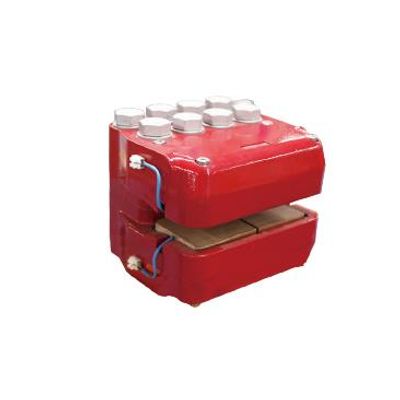

Huawu - Model SB Series -Hydraulic Disc Brake

• Ambient temperature: -40?~+70?
• Relative humidity: ≤100%

1. Normally-opened design, hydrualically applied and spring released, braking force will change as the change of hydraulic pressure.
2. Compact structure, few exposed parts and good anti-corrosive property. High reliability and easy maintenance.
3. Friction pads are characterized by high performance and stable friction coefficient.Brake smoothly and steadily, small noise.
4. Oil drain port is set to prevent leaked oil polluting the brake disc, which is not only safe but environmental protection.
5. Being equipped with pad wear indicator, it`s convinient to observe.
6. Pad wear compensation can be realized by changing piston stroke.
7. Double-cylinder symmetrical structure,easy installation and strong interchangeability.
8. When replace pads, it`s unnecessary to dismantle brake, quick and easy.
9. Limit switch can be set to provide interlocking protection and indicate brakes` status.

SB140-A03 Series Hydraulic Disc Brake:

• Piston diameter(mm):75
• Disc diameter (mm):≥900
• Disc thickness (mm):30
• Rated clamping force (N):141000

SB200-A15 Series Hydraulic Disc Brake:

• Piston diameter(mm):90
• Disc diameter (mm):≥900
• Disc thickness (mm):30
• Rated clamping force (N):203000

SB540-A21 Series Hydraulic Disc Brake:

• Piston diameter(mm):120
• Disc diameter (mm):≥2500
• Disc thickness (mm):60
• Rated clamping force (N):542500
