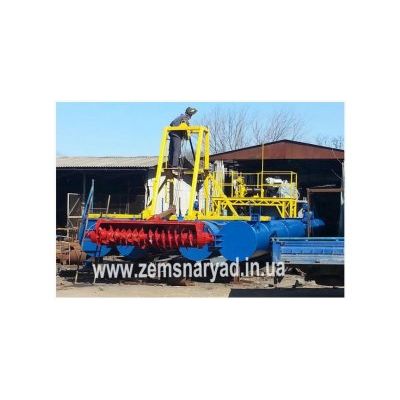

HCC - Model 2000/63-F -Hydraulic Dredger
Productivity оf the pulp: 2000 m3/h. Productivity оf the soil (hydraulic deposition of soil category 1): 500 m3/hour; 4000 m3 for the shift (8 hours). Dimensions: length 15 m, width 5 m, height 4,2 m. Weight: 35 t. Hydraulic dredger is equipped with an arrow. Suction pipe length is 10 m, equipped with a hydraulic cutter ripper (power of 40 kW, working width 800 mm, depth of cutting layer of 120 mm, speed 50 rev/min.).
Most popular related searches
- Slurry pipeline: 100 m (including: 50 m of floating pipeline and 50 m of coastal pipeline), diameter from 320 mm.
- Auxiliary GPR-103 power 85 kW.
- Power unit: YMZ-75.11. Specifications: 440 horse-powers, fuel consumption - 50 l/h, rotation frequency - 1900 rev/min.
- Pump: GRAU 2000/63. Pump specifications: 16 inch/12 inch; soil outlet 20% per hour, hydraulic drop of water column– 63 m, maximum capacity – 600 kWt, rotation frequency – 650 rev./min.
- The hydraulic dredger of this modification lifts the soil from the bottom of water basin of 1-8 m, the pushing through slurry pipeline is up to 1500 m.
- Energy supply: self-contained supply. Movement with the help of winches – 4 power units 2,2 kWt each.
- The enterprise guarantees the operation of the equipment for 1 year or 1800 Moto hours.
- Term of manufacturing is 6 months. Complete package of documents.
