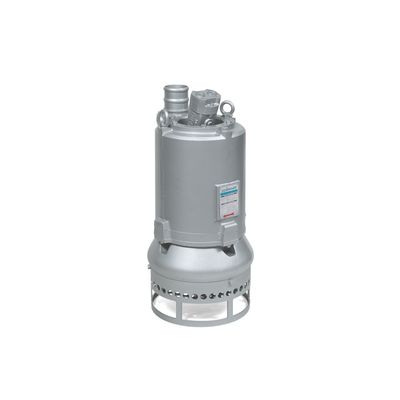

Dragflow - Model HY18 Basic Version -Hydraulic Dredging Pump

The HY18 is an hydraulic pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.

Most popular related searches

hydraulic dredge pump

High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
Low rotation speed: reduced wear and long term efficiency.
Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

Delivery: 80 mm
Capacity: 50 m³/h
Head: 17.5 m
Weight: 170 kg
Power: 13 kW
Solid handling: 20 mm
RPM: 2000

Dragflow - Model HY18 Basic Version -Hydraulic Dredging Pump

Main Characteristics

Technical Data

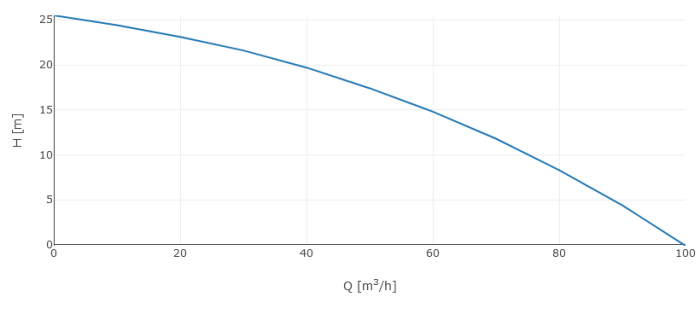

HY 18 Characteristic Curve
