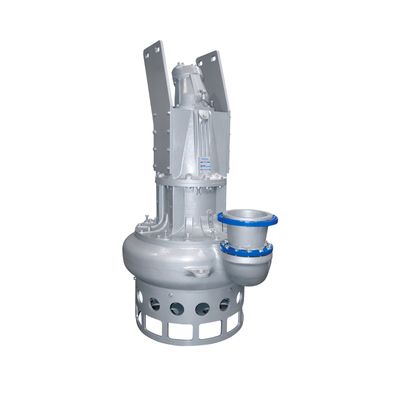

Dragflow - Model HY300 Basic Version -Hydraulic Dredging Pump

The HY300 is an hydraulic pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.

Most popular related searches

hydraulic dredge pump

High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
Low rotation speed: reduced wear and long term efficiency.
Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.

Delivery: 250 mm
Capacity: 900 m³/h
Head: 34 m
Weight: 3500 kg
Power: 220 kW
Solid handling: 120 mm
RPM: 750

Dragflow - Model HY300 Basic Version -Hydraulic Dredging Pump

Main Characteristics

Technical Data

HY 300 Characteristic Curve
