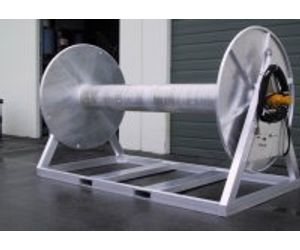

Canadyne BoomReels - Hydraulic-Driven BoomReels for Deployment
Canadyne BoomReels are used for the storage and deployment of Canadyne FenceBoom or Canadyne AirBoom (MP, SC, SCS, SP). The reels are available in many sizes to accommodate various quantities and sizes of boom. Standard reels are hydraulic driven, and come with forklift pockets and lifting eyes for easy and convenient positioning on docks, vessels, trailers, or at the spill site.
Most popular related searches
spreader bar
protective boom
hydraulic control system
safety regulations
boom reel
valve operator
hydraulic lifting
electric forklift
welding safety
- Heavy duty, corrosion resistant welded marine grade aluminum construction
- Solid end flanges and emergency bypass valve for safe operation
- Can be driven with Canadyne PowerPacks, or off available hydraulic supply
- Speed and direction controls can be mounted on the reel, or on the power source
- Simple, reliable hydraulic connections with brass quick connects
- Custom built, available in a wide range of sizes.
- Rugged, welded marine grade aluminum construction.
- Heavy duty direct-drive hydraulic drive system.

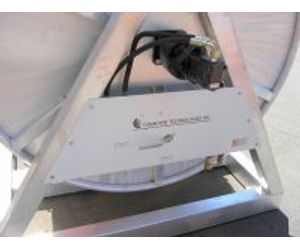

- Controls (reel speed and direction, emergency bypass) can be reel mounted, or located on separate power unit.
- Solid end flanges for safe operation.
- Available with diesel, gasoline or electric power packs.
- Convenient forklift pockets and lifting eyes.
- Heavy duty 1/4 in (6.3mm) wall box-section aluminum frame
- Reel core rolled from 1/4 in (6.3mm) aluminum plate
- Solid end flanges for maximum safety
- Fully welded construction
- Direct-drive hydraulic drive system (no exposed rotating parts) provides maximum safety and requires no maintenance (unlike chain drive systems)
- Fully reversible, variable speed reel rotation when using Canadyne Hydraulic Power Packs
- Fork-lift pockets on models up to 144” (366cm) long
- Bolting flanges for permanent mounting to dock, vessel or trailer
- Tie down flanges for secure operation in non-permanent situations
- Lifting eyes (spreader bar recommended)
- Bypass control allows for reel rotation without hydraulic power
- Brass quick-disconnect hydraulic fittings
- Full factory support for spares, repairs and technical assistance
- Full set of reel-mounted controls to allow use of ship’s hydraulics or other source of hydraulic power
- Weather cover
- ISO storage container
- Transport trailers
- Spreader bar for overhead lifting
Recommended Spares/Accessories
- Weather cover (to protect boom if stored outdoors)
- Spare hydraulic quick-disconnect set
